Product Code: DAM00PDP1RA00000

PID Controller for precise control
Easy DIN Rail mounting
Operates in -40 to 75°C range
IP30 protection rating
LED indicators for status

Specifications

General

Product Type

PID Control Module

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution Voltage: 500 µV; Current: 1 µA	Channel Isolation 500 Vrms isolation between input, output, power supply	Digital Outputs 3 Relay outputs
Output Ratings Form A Relay: 2A @ 30VDC/30VAC (55°C) • Form C Relay: 1A @ 30VDC/30VAC (55°C)	Analog Outputs 0–10 VDC / 0–20 mA / 4–20 mA	Input Ratings TC, RTD, mA/V inputs — full specs in datasheet (e.g., 20 MO input impedance for TC)
Input Type Thermocouple, RTD, mV, 0–10 V, 0/4–20 mA	Output Type Relay Outputs + Linear Analog Output	Power Consumption 3.3 W
Terminal Type Screw terminals	Analog Inputs TC, RTD, 0–10 V, 0/4–20 mA

Mechanical

Housing Material

Metal + Plastic

Mounting Method

DIN Rail

Dimensions & Physical Data

Depth

157.91 mm

Height

114.97 mm

Width

48.51 mm

Environmental

Storage Temperature

-40 to 85°C

Operating Temperature

-40 to 70°C

IP Rating

IP30

Communication & Control

Expandable Communications

Provided by host DA70 Controller

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Hazardous Location Ratings

Class I Division 2

Accessories & Additional Information

Development Software

Crimson

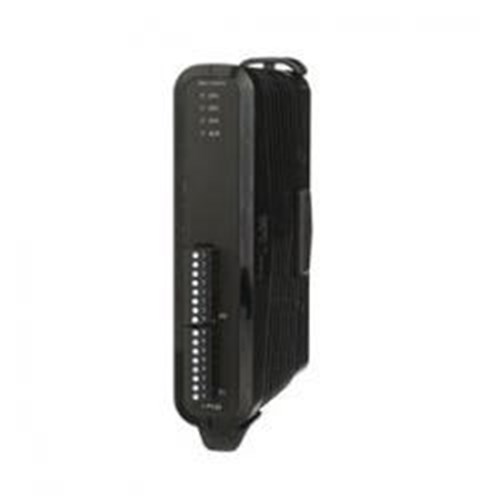

Red Lion DAM00PDP1RA00000 Analog Outputs Module
