Product Code: DAM00I0UIN610000

I/O Module with 0-10 VDC rated voltage
Handles 0-20 mA and 4-20 mA currents
Easy DIN Rail mounting
IP30 protection rating
Complies with IEC/EN61010-1, RoHS standards

Specifications

General

Product Type

I/O Module

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution 16 bits	Digital Outputs 0	No. of Analog Inputs 0
No. of Analog Outputs 0	No. of Digital Inputs 0	No. of Digital Outputs 0
Output Ratings Digital: 30 VDCAnalog: Software programmable for 0-5 VDC, -10 VDC to 10 VDC,0-20 mA, and 4-20 mAEffective Resolution: Full 16-bit (Signed)	Input Ratings Input Impedance: 20 M ohm100 ohm platinum, Alpha = 0.00385 -200 to +600 °C-328 to +1100 °F100 ohm platinum, Alpha = 0.003919 -200 to +600 °C-328 to +1100 °F120 ohm nickel, Alpha = 0.00672 -80 to +215 °C-112 to +419 °FCurrent: 0-20 mA or 4-20 mAVoltage: 0-10 VDC	Input Type THERMOCOUPLE(T, E, J, K, R, S, B, N, C)RTD Resistive (2, 3 Wire)CurrentVoltage
Output Type Voltage	Power Consumption 1 W	Terminal Type Screw terminals

Mechanical

Housing Material

Polycarbonate

Mounting Method

DIN Rail

Dimensions & Physical Data

Depth

34.32 mm

Height

157.91 mm

Width

114.97 mm

Environmental

Storage Temperature

-40 to +85 °C

Operating Temperature

-40 to 75 °C

IP Rating

IP30

Communication & Control

Expandable Communications

Yes

Safety, Standards & Compliance

Compliance Standards

EN 61326-1 Immunity to Industrial LocationsEmission CISPR 11 Class AIEC/EN 61010-1

Hazardous Location Ratings

RoHS Compliant II 3 G Ex ec IIC T4 GcDEMKO 20 ATEX 2268XIECEx UL 20.0007XUL22UKEX2576XClass I, Division 2,Groups A, B, C, D,

Accessories & Additional Information

Development Software

Crimson

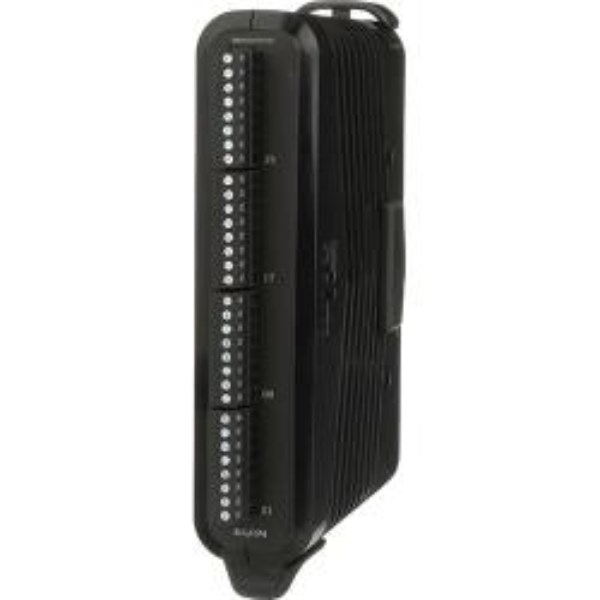

Red Lion DAM00I0UIN610000 Universal Input Module 0-10VDC
