Product Code: DAM00I0IN4DA0000

DIN Rail mounting for easy installation
Wide temp range: -40 to 75°C
IP30 protection for safe use
Complies with ATEx, CE, IEC/EN61010-1 standards
RoHS and UL Hazardous approved

Specifications

General

Product Type

I/O Module

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution 16-bit	Channel Isolation 500?Vrms isolation	Digital Inputs 3 DI channels
Digital Outputs 3 MOSFET outputs	Output Ratings DO: 1?A max; AO: 500?µV (voltage), 1?µA (current) resolution	Analog Outputs 2
Input Ratings UI ranges: 0–10?V, 0/4–20?mA, TC types; DI: 30?VDC max, ON 3.8?V, OFF 1.2?V	Input Type Universal Input: TC, RTD, Voltage, Current; DI sink/source	Output Type MOSFET outputs + analog outputs
Power Consumption 2.7 W	Terminal Type Screw terminals	Analog Inputs 4 Universal Inputs

Mechanical

Housing Material

Plastic

Mounting Method

DIN-rail

Dimensions & Physical Data

Depth

34.32 mm

Height

157.91 mm

Width

114.97 mm

Environmental

Storage Temperature

–40 to 80°C

Operating Temperature

–40 to 75°C

IP Rating

IP30

Communication & Control

Expandable Communications

Provided by host DA70 Controller

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Accessories & Additional Information

Development Software

Crimson 3.2

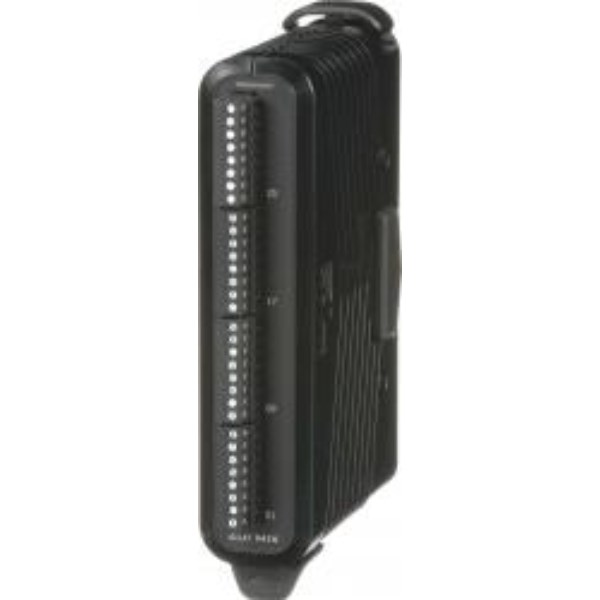

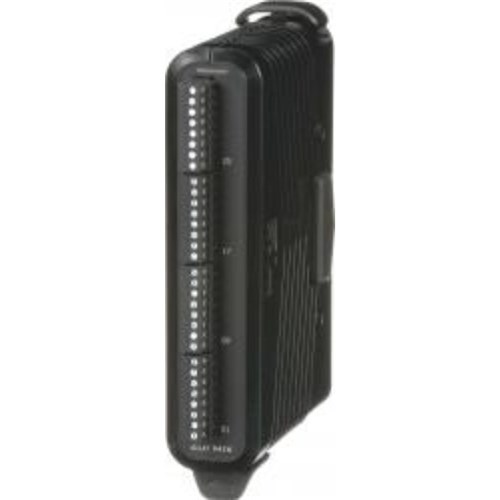

Red Lion DAM00I0IN4DA0000 I/O Mix Module
