Product Code: DAM00I0IN2DA0000

DIN rail mount for easy installation
Operates from -40 to 75°C
IP30 protection rating
LED indicators for status monitoring

Specifications

General

Product Type

I/O Module

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution 16-bit	Channel Isolation 500?Vrms isolation between Inputs, Outputs, and Host Controller	Digital Inputs 8
Digital Outputs 8	No. of Analog Inputs 0	No. of Analog Outputs 2
No. of Digital Inputs 8	No. of Digital Outputs 8	Output Ratings 0.5 Amps @ 30 VDC/30 VAC at 65 °C or 2 Amps @ 30 VDC/30 VAC at 60 °C
Input Ratings +30 VDC; Off Voltage: < 1.2 Volts; On Voltage: > 3.8 Volts; Input Impedance: Source Mode 10K ohms, Sink Mode 20K ohms	Input Type Software selectable for sink or source signals	Output Type Relay
Power Consumption 2.6 W	Terminal Type Screw terminals

Mechanical

Housing Material

Plastic

Mounting Method

DIN-rail

Dimensions & Physical Data

Depth

34.32 mm

Height

157.91 mm

Width

114.97 mm

Environmental

Storage Temperature

–40 to 80°C

Operating Temperature

–40 to 75°C

IP Rating

IP30

Communication & Control

Expandable Communications

Provided by host DA70 Controller

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Accessories & Additional Information

Development Software

Crimson

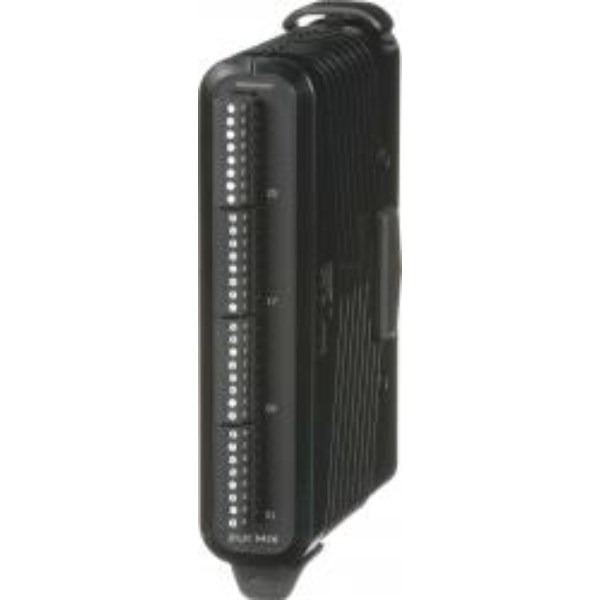

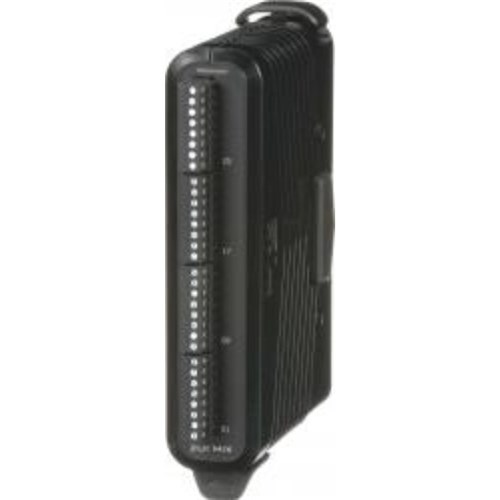

Red Lion DAM00I0IN2DA0000 I/O Mix Module
