Product Code: DAM00I0DI0R00000

Supports 40 VDC rated voltage
Handles current up to 200 A
Easy DIN Rail mounting
Operates from -40 to 75°C
ATEx and IECEx approved

Specifications

General

Product Type

I/O Module

Brand

Red Lion

Series

FlexEdge

Electrical

Channel Isolation 500?Vrms isolation between Inputs, Outputs, and Host Controller	Digital Inputs 8	Digital Outputs 8
No. of Analog Inputs 0	No. of Analog Outputs 0	No. of Digital Inputs 8
No. of Digital Outputs 8	Output Ratings 0.5 A @ 30?VDC/30?VAC (65?°C); 2?A @ 30?VDC/30?VAC (60?°C)	Input Ratings Max +30?VDC, reverse-polarity protected; filter on=50?Hz, off=300?Hz
Input Type Sink/Source, TTL-compatible; ON > 3.8 V, OFF < 1.2 V; impedance 10kO (source), 20kO (sink)	Output Type Mechanical Relays	Power Consumption 2.0 W
Terminal Type Screw terminals

Mechanical

Housing Material

Polycarbonate

Mounting Method

DIN-rail

Dimensions & Physical Data

Depth

34.32 mm

Height

157.91 mm

Width

114.97 mm

Environmental

Storage Temperature

–40 to 80°C

Operating Temperature

–40 to 75°C

IP Rating

IP30

Communication & Control

Expandable Communications

Provided by host DA70 Controller

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Accessories & Additional Information

Development Software

Crimson

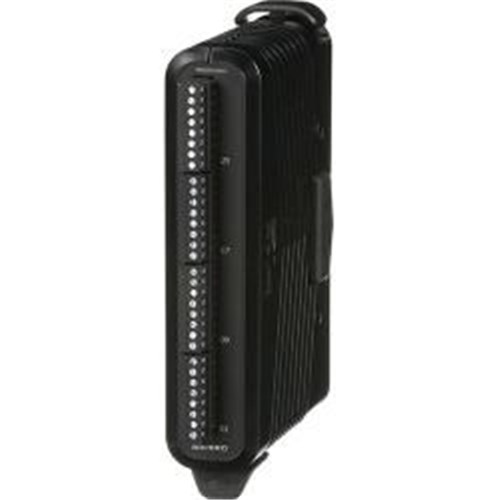

Red Lion DAM00I0DI0R00000 Input/Output Module 8 Outputs 40VDC
