Product Code: DAM00I00UT8I0000

Supports 40 VDC output
Handles up to 200 A current
Compact DIN Rail mount design
Operates in -40 to 75°C range
IP30 protection rating

Specifications

General

Product Type

I/O Module

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution 16-bit	Channel Isolation Outputs isolated from each other and from host; 500 Vrms for 1 minute	Output Ratings 0-5 VDC, 0-10 VDC, ±5 VDC, ±10 VDC, 0/4-20 mA
Analog Outputs 8	Output Type Voltage & Current Output	Power Consumption 4.6W
Terminal Type screw terminals

Mechanical

Housing Material

Polycarbonate

Dimensions & Physical Data

Depth

114.97mm

Height

157.91mm

Width

34.32mm

Environmental

Storage Temperature

-40°C to 80°C

Operating Temperature

-40°C to 75°C

IP Rating

IP30

Communication & Control

Expandable Communications

Provided by host DA70 Controller

Safety, Standards & Compliance

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Certifications / Approvals

EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Accessories & Additional Information

Development Software

Crimson 3.2

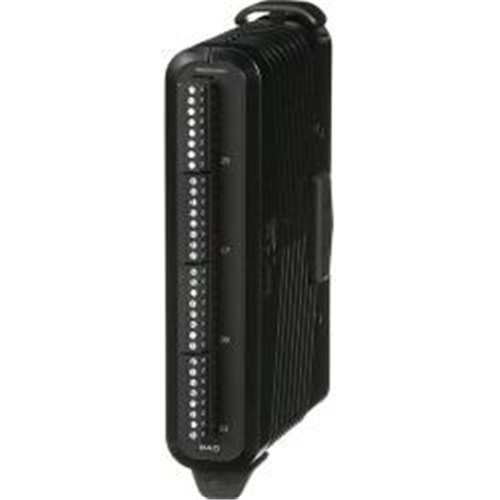

Red Lion DAM00I00UT8I0000 Analog Outputs Module 8 Outputs 40VDC
