Product Code: DA70A0GNNNNNN030

Supports RS-232 and RS-485 comms
Operates at 12-24 VDC, 5 W power
DIN rail mounting for easy install
Wide temp range: -40 to 75°C
IP30 protection rating

Specifications

General

Product Type

IIoT Gateway

Brand

Red Lion

Series

FlexEdge

Electrical

Digital Inputs 0 (requires module)	Digital Outputs 0 (requires module)	Output Ratings Serial port isolation only
Analog Outputs 0 (requires module)	Power Consumption 4–5 W (typ/max base unit)	Supply Voltage 12–24 VDC ±15%
Terminal Type Screw terminals	Analog Inputs 0 (requires module)

Mechanical

Housing Material

Metal + Plastic

Mounting Method

DIN Rail

Dimensions & Physical Data

Depth

131.28 mm

Height

173.80 mm

Width

152.98 mm

Environmental

Storage Temperature

-40 to +85°C / -20 to +85°C (HDMI models)

Operating Temperature

-40 to +75°C / -20 to +75°C (HDMI models)

IP Rating

IP30

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 2 x Ethernet	Expandable Communications Up to 3 Sleds
Fieldbus Interface Via Sleds (Optional)	Serial Ports 1 - RS-232 port (RJ12 connector)2 - RS-485/422 ports (RJ45 connectors)	USB Port 1x USB Type B (Device), 1x USB Type A (Host)
Supported Ethernet Protocols TCP/IP, NAT, VPN, Firewall	Supported Serial Protocols RS232/RS485/422 (depending on model)

Safety, Standards & Compliance

Compliance Standards

EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Accessories & Additional Information

Development Software

Web GUI/ Crimson

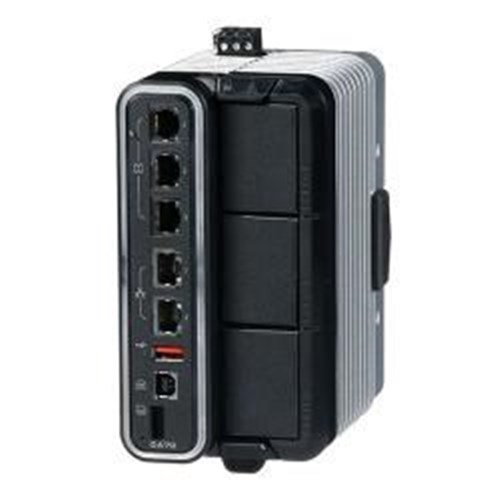

Red Lion DA70A0GNNNNNN030 Sled Modular Gateway 12-24VDC
