Product Code: DA70A0GNNNNNN020

Supports Ethernet, RS-232, RS-485 & USB interfaces
Operates on 12-24 VAC power supply
Easily mounts on DIN rail systems
IP30 rated for protection against dust
Complies with EN61326-1 & RoHS standards

Specifications

General

Product Type

Iiot Gateway

Brand

Red Lion

Series

FlexEdge

Electrical

Digital Inputs 0 (requires module)	Digital Outputs 0 (requires module)	Output Ratings Serial port isolation only
Analog Outputs 0 (requires module)	Power Consumption 4–5W (typ/max base unit)	Supply Voltage 12–24 VDC ±15%
Terminal Type Screw terminals	Analog Inputs 0 (requires module)

Mechanical

Housing Material

Metal + Plastic

Dimensions & Physical Data

Depth

131.28mm

Height

173.8mm

Width

152.98mm

Environmental

Storage Temperature

-40 to +85°C / -20 to +85°C (HDMI models)

Operating Temperature

-40 to +75°C / -20 to +75°C (HDMI models)

IP Rating

IP30

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 2 x Ethernet	Expandable Communications Up to 3 Sleds
Fieldbus Interface Via Sleds (Optional)	Serial Ports 1 - RS-232 port (RJ12 connector)2 - RS-485/422 ports (RJ45 connectors)	USB Port 1x USB Type B (Device), 1x USB Type A (Host)
Supported Ethernet Protocols TCP/IP, NAT, VPN, Firewall	Supported Serial Protocols RS232/RS485/422 (depending on model)

Safety, Standards & Compliance

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Certifications / Approvals

EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Accessories & Additional Information

Development Software

Web GUI/ Crimson

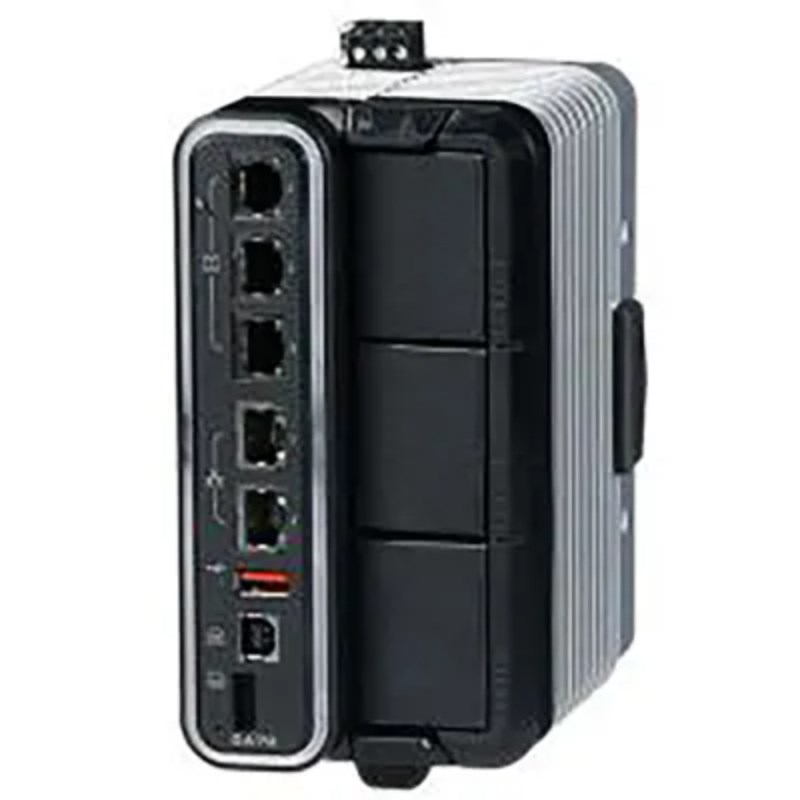

Red Lion DA70A0GNNNNNN020 Sled Modular Protocol Gateway 12-24VAC
