Product Code: DA50A1BNN0000040

Supports 12-24 VDC operation
Operates in -40 to 75°C range
IP30 protection rating
ATEx, CE, IECx, UL HazLoc C1D2 certified

Specifications

General

Product Type

Iiot Gateway

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution 12-bit ADC	Digital Inputs Yes	Digital Outputs Yes
No. of Analog Inputs Yes (shared AI/DI)	No. of Analog Outputs No	No. of Digital Inputs 1
No. of Digital Outputs 1	Output Ratings -0.4 VDC - 30 VDC, upto 500 mADC	Analog Outputs No
Input Ratings 0.3 VDC - 33 VDC	Input Type Voltage-Level Digital Input	Output Type Open-Collector Output
Power Consumption 2.5W to 5.7W	Supply Voltage 12V to 24V DC	Terminal Type Screw terminals
Analog Inputs Yes (shared AI/DI)

Mechanical

Housing Material

Polycarbonate

Dimensions & Physical Data

Depth

129.75mm

Height

174.34mm

Width

51.6mm

Environmental

Storage Temperature

-20°C to 85°C

Operating Temperature

-20°C to 75°C

IP Rating

IP30

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 2 x Ethernet	Expandable Communications Yes via sleds
Fieldbus Interface None	Serial Ports 2 x Serial (RS232, RS485/422)	USB Port 1 x USB Type B
Supported Ethernet Protocols TCP/IP, NAT, VPN, Routing	Supported Serial Protocols RS232, RS485/422

Safety, Standards & Compliance

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Certifications / Approvals

EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Accessories & Additional Information

Development Software

Crimson Control

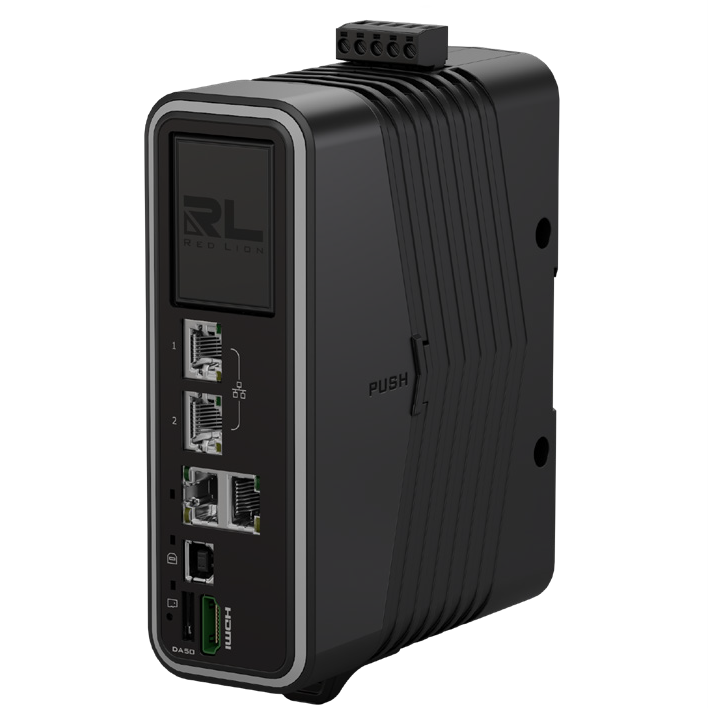

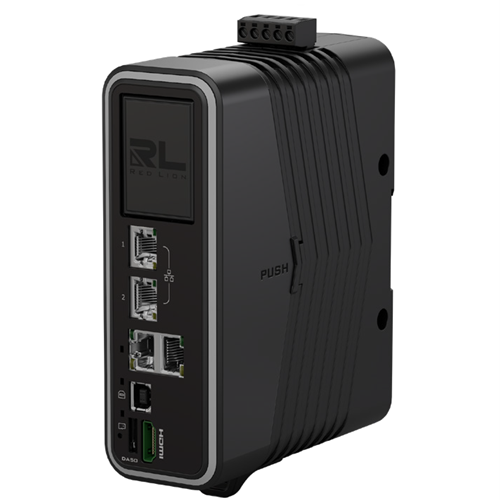

Red Lion DA50A1BNN0000040 Sled Gateway 12-24VDC
