Product Code: DA50A0BNN0000030

Ethernet, RS-232 & RS-485 interfaces
Operates on 12-24 VAC
Easy DIN rail mounting
IP30 protection rating
Complies with EN61326-1 & RoHS standards

Specifications

General

Product Type

IIoT Gateway

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution 12-bit ADC	Digital Inputs Yes	Digital Outputs Yes
No. of Analog Inputs Yes (shared AI/DI)	No. of Analog Outputs No	No. of Digital Inputs 1
No. of Digital Outputs 1	Output Ratings -0.4 VDC - 30 VDC, upto 500 mADC	Analog Outputs No
Input Ratings 0.3 VDC - 33 VDC	Input Type Voltage-Level Digital Input	Output Type Open-Collector Output
Power Consumption 2.5–5.7 W	Supply Voltage 12–24 VDC	Terminal Type Screw terminals
Analog Inputs Yes (shared AI/DI)

Mechanical

Housing Material

Polycarbonate

Mounting Method

DIN Rail

Dimensions & Physical Data

Depth

129.75 mm

Height

174.34 mm

Width

51.60 mm

Environmental

Storage Temperature

-40 to +85°C

Operating Temperature

-40 to +75°C

IP Rating

IP30

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 2 x Ethernet	Expandable Communications Yes via sleds
Fieldbus Interface None	Serial Ports 2 x Serial (RS232, RS485/422)	USB Port 1 x USB Type B
Supported Ethernet Protocols TCP/IP, NAT, VPN, Routing	Supported Serial Protocols RS232, RS485/422

Safety, Standards & Compliance

Compliance Standards

EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Accessories & Additional Information

Development Software

Web GUI/ Crimson

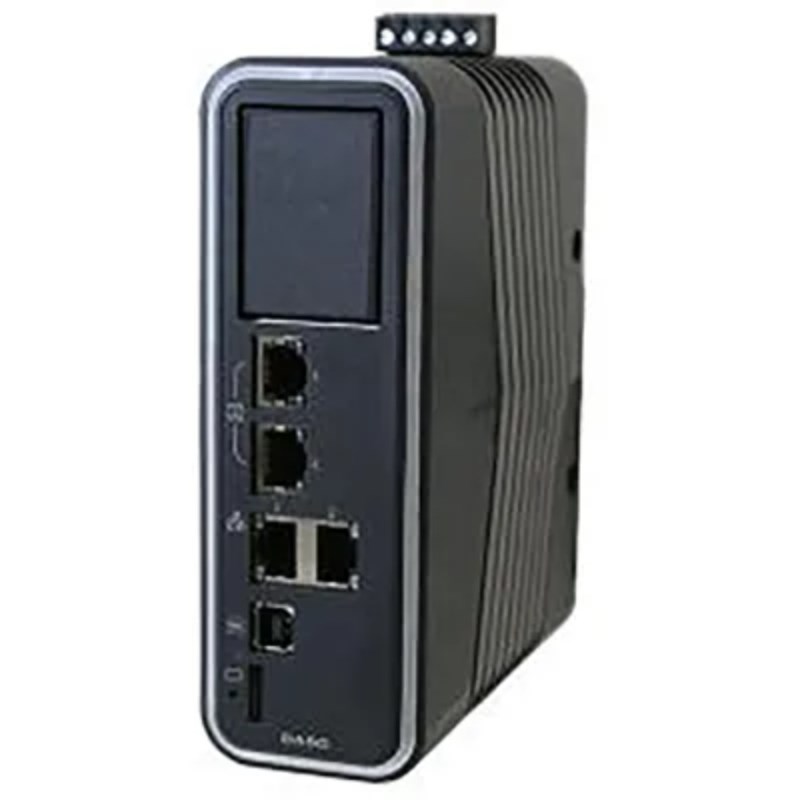

Red Lion DA50A0BNN0000030 Sled Gateway 12-24VAC
