Product Code: DA30D0F000000000

Wide voltage range: 10-30 VDC
Operates in -10 to 50°C
Ethernet, RS-232, RS-485 USB interfaces

Specifications

General

Product Type

Protocol Converter

Brand

Red Lion

Series

DAx0D

Electrical

Power Consumption

4.5 W - 7 W

Supply Voltage

10-30 VDC

Terminal Type

DIN Rail

Mechanical

Housing Material

Polycarbonate

Mounting Method

DIN rail mount

Dimensions & Physical Data

Depth

33.3 mm

Height

127.7 mm

Width

101.4 mm

Environmental

Storage Temperature

-20 °C - 70 °C

Operating Temperature

-10 °C - 50 °C

IP Rating

IP40

Communication & Control

Ethernet Ports 1	Expandable Communications Yes	Serial Ports 3
USB Port 1	Supported Serial Protocols RS232, RS422 and RS486

Safety, Standards & Compliance

Compliance Standards

CE, ROHS

Accessories & Additional Information

Development Software

Red Lion’s Crimson 3.1 and 3.2

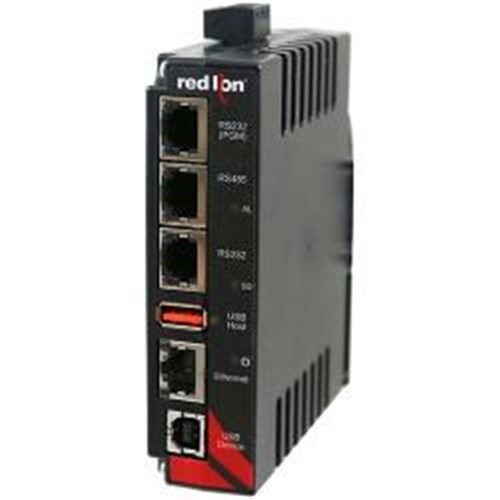

Red Lion DA30D0F000000000 Protocol Converter and Data Acquisition System W/Data Logger Web Server and Virtual HMI
