Product Code: DA10D0C000000000

Operates at 24 VDC
Temp range: -10 to 50°C
Ethernet, RS-232, RS-485 & USB connectivity

Specifications

General

Product Type

Protocol Converter

Brand

Red Lion

Series

DAx0D

Electrical

Power Consumption

1.9 W - 3.5 W

Supply Voltage

24 VDC

Terminal Type

DIN Rail

Mechanical

Housing Material

Polycarbonate

Mounting Method

DIN rail mount

Dimensions & Physical Data

Depth

31.8 mm

Height

127.7 mm

Width

101.4 mm

Environmental

Storage Temperature

-20 °C - 70 °C

Operating Temperature

-10 °C - 50 °C

IP Rating

IP40

Communication & Control

Ethernet Ports 1	Expandable Communications No	Serial Ports 2
USB Port 1	Supported Serial Protocols RS232, RS422 and RS485

Safety, Standards & Compliance

Compliance Standards

CE, ROHS

Hazardous Location Ratings

Class 1 Div 2 Groups A, B, C and D

Accessories & Additional Information

Development Software

Red Lion’s Crimson 3.1 and 3.2

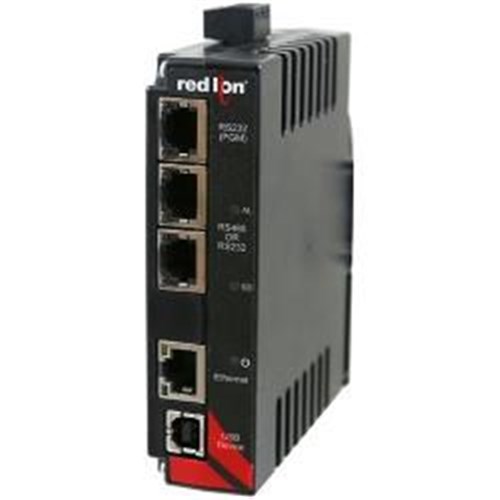

Red Lion DA10D0C000000000 Protocol Converter and Data Acquisition System 24VDC Ethernet RS232 RS485 USB
