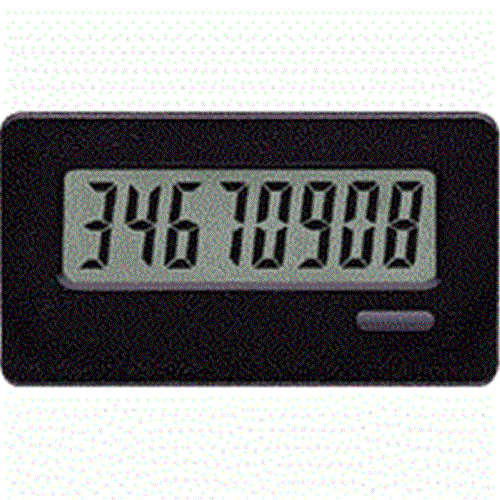

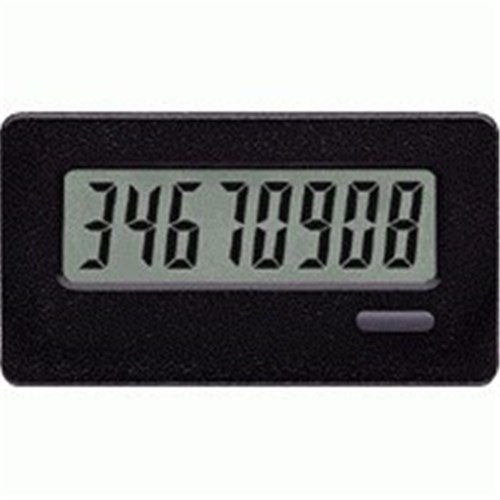

8DIGIT COUNTER,LOW VOLTAGE IN 9mm LCD, REFLECTIVE DISPLAY COUNT SPEED UPTO 10KHz REDLION

Product Code: CUB7CCS0

  • 8-digit LCD reflective display
  • Rated for 28 VDC operation
  • Compact size: 50.8 x 27.9 x 41.6 mm
  • IP65 protection against dust and water
  • Wide temp range: -30 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
8-digit counter
Brand
Red Lion
Series
CUB7

Electrical

Input Ratings
28 V DC max, 10 kHz max
Input Type
Contact, logic or open-collector count input
Terminal Type
Screw-clamp terminals

Mechanical

Housing Material
Plastic
Mounting Method
Panel

Dimensions & Physical Data

Height
28 mm
Width
51 mm

Environmental

IP Rating
NEMA 4X, IP65 front

Communication & Control

Expandable Communications
No

Safety, Standards & Compliance

Compliance Standards
UL Listed
