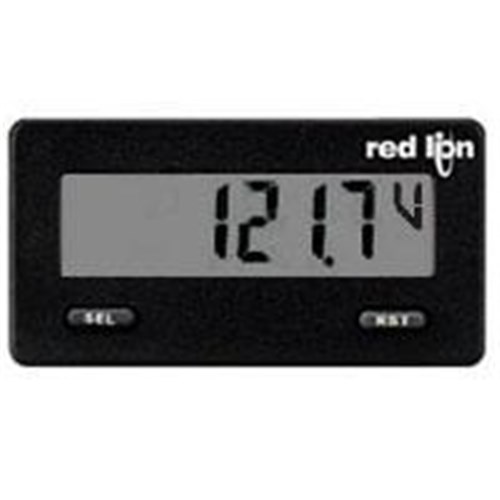

Product Code: CUB5VR00

Operates on 9-28 VDC voltage
Clear 5-digit LCD display
Compact panel mount design
IP65 rated for dust and water resistance
Withstands vibrations from 5-500 Hz

Specifications

General

Product Type

DC voltmeter

Brand

Red Lion

Series

CUB5

Electrical

Digital Inputs 1	Digital Outputs 0	Input Ratings 0 to 200 mV DC, 0 to 2 V DC, 0 to 20 V DC, 0 to 200 V DC
Input Type DC voltage	Supply Voltage 9 to 28 V DC	Terminal Type Screw-clamp terminals
Analog Inputs 1

Mechanical

Housing Material

High-impact plastic

Mounting Method

Panel

Dimensions & Physical Data

Depth

43.4 mm

Height

39.1 mm

Width

74.9 mm

Environmental

Storage Temperature

-35 to 85 °C

Operating Temperature

-35 to 75 °C

IP Rating

Type 4X, IP65 front; IP20 rear

Communication & Control

Expandable Communications

Yes

Serial Ports

USB Port

Safety, Standards & Compliance

Compliance Standards

CE, RoHS, UL Recognized, UL Listed, EN 61326-1, EN 61010-1, EN 61010-2-030

Accessories & Additional Information

Development Software

Crimson

DC VOLT METER W/ REFLECTIVE DISPLAY,LCD,12.2mm HIGH DIGIT 9-28VDC,NEMA 4X/IP65 REDLION
