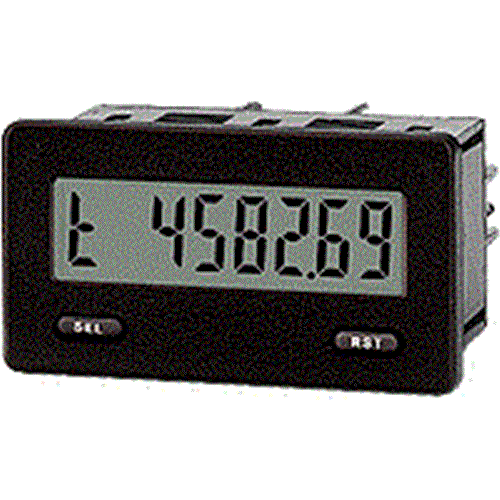

Product Code: CUB5TR00

Operates on 9-28 VDC power
Clear 8-digit LCD display
Compact panel mount design
IP65 rated for dust and water resistance
Wide temp range: -35 to 75°C

Specifications

General

Product Type

Preset timer and cycle counter

Brand

Red Lion

Series

CUB5

Electrical

Digital Outputs 0	Input Ratings 28 V DC max	Input Type 2 signal inputs, 1 user input; logic, open-collector, relay or switch
Supply Voltage 9 to 28 V DC	Terminal Type Screw-clamp terminals

Mechanical

Housing Material

High-impact plastic

Mounting Method

Panel

Dimensions & Physical Data

Depth

43.4 mm

Height

39.1 mm

Width

74.9 mm

Environmental

Storage Temperature

-35 to 85 °C

Operating Temperature

-35 to 75 °C

IP Rating

Type 4X, IP65 front; IP20 rear

Communication & Control

Expandable Communications

Yes

Serial Ports

USB Port

Safety, Standards & Compliance

Compliance Standards

CE, RoHS, UL Recognized, UL Listed, EN 61326-1, EN 61010-1, EN 61010-2-030

Accessories & Additional Information

Development Software

Crimson

PRESET TIMER & CYCLE COUNTER W/ REFLECTIVE DISPLAY,11.7mm HIGH DIGITS,9-28VDC REDLION
