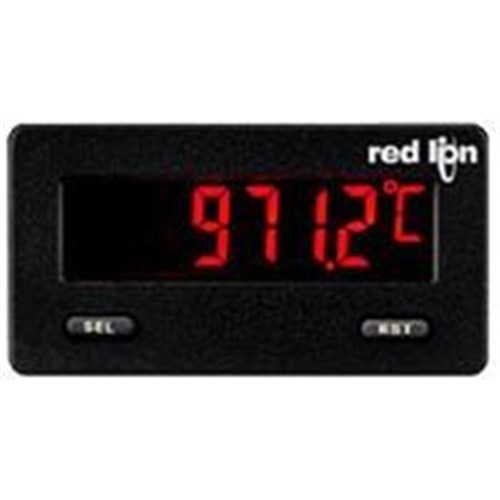

Product Code: CUB5TCB0

Operates on 9-28 VDC
5-digit LCD display
Compact panel mount design
IP65 protection rating
CE, RoHS, UL approved

Specifications

General

Product Type

Thermocouple meter

Brand

Red Lion

Series

CUB5

Electrical

Digital Inputs 1	Digital Outputs 0	Input Type Thermocouple Types T, E, J, K, R, S, B, N; millivolt
Supply Voltage 9 to 28 V DC	Terminal Type Screw-clamp terminals	Analog Inputs 1

Mechanical

Housing Material

High-impact plastic

Mounting Method

Panel

Dimensions & Physical Data

Depth

43.4 mm

Height

39.1 mm

Width

74.9 mm

Environmental

Storage Temperature

-35 to 85 °C

Operating Temperature

-35 to 75 °C

IP Rating

Type 4X, IP65 front; IP20 rear

Communication & Control

Expandable Communications

Yes

Serial Ports

USB Port

Safety, Standards & Compliance

Compliance Standards

CE, RoHS, UL Recognized, UL Listed, EN 61326-1, EN 61010-1, EN 61010-2-030

Accessories & Additional Information

Development Software

Crimson

THERMOCOUPLE METER W/ BACK LIGHT DISPLAY,LCD,GREEN/RED LED,12.2mm HIgh DIGITS REDLION
