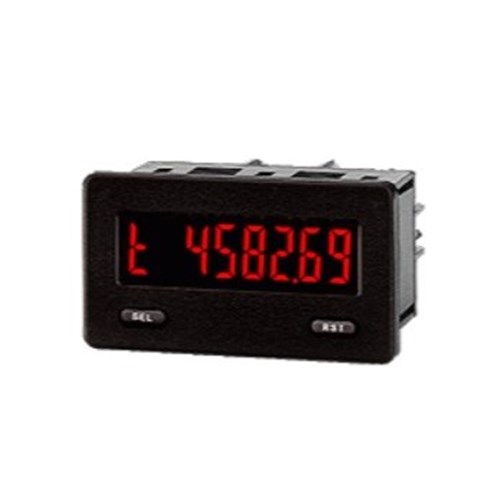

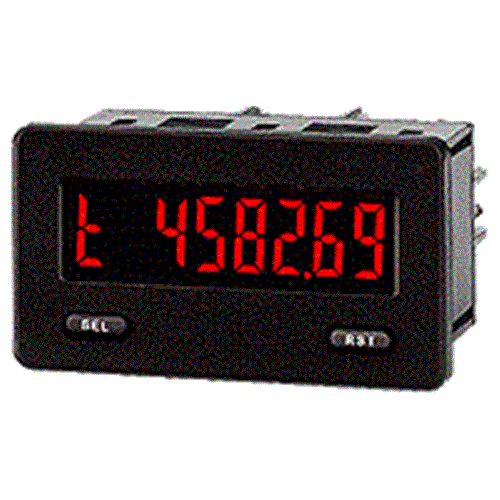

Product Code: CUB5TB00

Operates on 9-28 VDC
Clear 8-digit LCD display
Compact panel mounting design
Durable IP65 protection rating
CE, RoHS, UL certified

Specifications

General

Product Type

Preset timer and cycle counter

Brand

Red Lion

Series

CUB5

Electrical

Digital Outputs 0	Input Ratings 28 V DC max	Input Type 2 signal inputs, 1 user input; logic, open-collector, relay or switch
Supply Voltage 9 to 28 V DC	Terminal Type Screw-clamp terminals

Mechanical

Housing Material

High-impact plastic

Mounting Method

Panel

Dimensions & Physical Data

Depth

43.4 mm

Height

39.1 mm

Width

74.9 mm

Environmental

Storage Temperature

-35 to 85 °C

Operating Temperature

-35 to 75 °C

IP Rating

Type 4X, IP65 front; IP20 rear

Communication & Control

Expandable Communications

Yes

Serial Ports

USB Port

Safety, Standards & Compliance

Compliance Standards

CE, RoHS, UL Recognized, UL Listed, EN 61326-1, EN 61010-1, EN 61010-2-030

Accessories & Additional Information

Development Software

Crimson

PRESET TIMER & CYCLE COUNTER W/ BACKLIGHT DISPLAY,RED LED 11.7mm HIGH DIGITS REDLION
