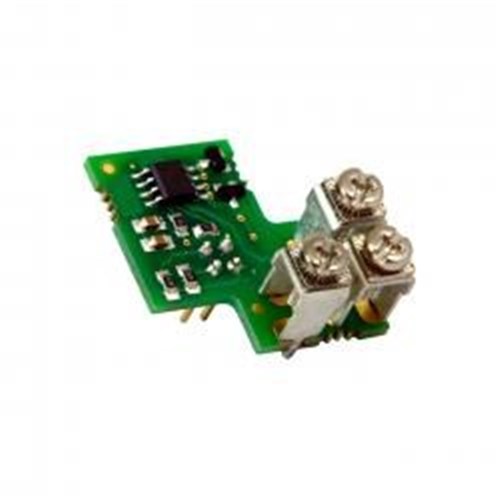

DUAL SINKING OUTPUT CARD FOR CUB5,CURRENT RATING 100mA MAX REDLION

Product Code: CUB5SNK0

  • Compact size: 74.9 x 39.1 x 43.4 mm
  • IP65 protection against dust and water
  • Operates in -35 to 75°C temperature range
  • RoHS compliant for environmental safety
  • UL Recognized for quality assurance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Dual Sinking Output Card
Brand
Red Lion
Series
CUB5

Electrical

Digital Outputs
2
Output Type
Sinking open collector
Power Consumption
0 W
Supply Voltage
9 to 28 V DC
Terminal Type
Terminal

Mechanical

Housing Material
Plastic
Mounting Method
Plug-in

Environmental

Storage Temperature
-35 to 85 °C
Operating Temperature
-35 to 75 °C
IP Rating
Type 4X, IP65 front; IP20 rear

Safety, Standards & Compliance

Compliance Standards
IEC 68-2-27, IEC 68-2-6

Documents

IPD Product Catalogue V17
