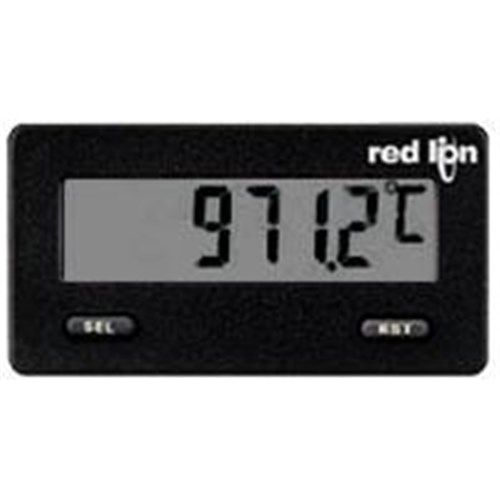

Product Code: CUB5RTR0

Operates at 9-28 VDC
Clear 5-digit LCD display
Compact panel mounting design
IP65 protection rating
Wide temp range: -35 to 75°C

Specifications

General

Product Type

RTD meter

Brand

Red Lion

Series

CUB5

Electrical

Digital Inputs 1	Digital Outputs 0	Input Ratings 100 O platinum a 0.00385, 100 O platinum a 0.00392, 120 O nickel a 0.00672, 10 O copper a 0.00427
Input Type RTD	Supply Voltage 9 to 28 V DC	Terminal Type Screw-clamp terminals
Analog Inputs 1

Mechanical

Housing Material

High-impact plastic

Mounting Method

Panel

Dimensions & Physical Data

Depth

43.4 mm

Height

39.1 mm

Width

74.9 mm

Environmental

Storage Temperature

-35 to 85 °C

Operating Temperature

-35 to 75 °C

IP Rating

Type 4X, IP65 front; IP20 rear

Communication & Control

Expandable Communications

Yes

Serial Ports

USB Port

Safety, Standards & Compliance

Compliance Standards

CE, RoHS, UL Recognized, UL Listed, EN 61326-1, EN 61010-1, EN 61010-2-030

Accessories & Additional Information

Development Software

Crimson

RTD METER W/ REFLECTIVE DISPLAY,12.2mm HIGH DIGITS LCD,9-28VDC PWR REDLION
