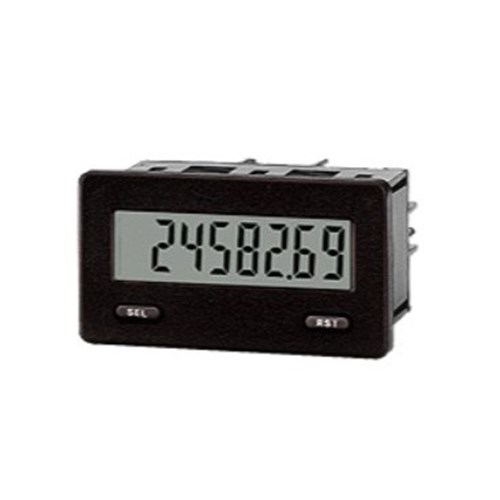

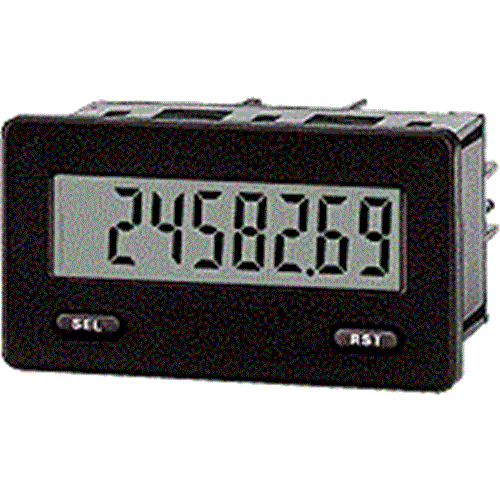

Red Lion CUB5R000 Miniature Electronic Dual Counter and Rate Indicator 10-28VDC 8 Digit LCD, LED Backlight Display

Product Code: CUB5R000

  • Operates on 10-28 VDC power.
  • Features an 8-digit display.
  • LCD with selectable green/red LED backlight.
  • Compact size: 74.9 x 39.1 x 43.4 mm.
  • IP65 rated for dust and water resistance.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Intelligent Meter
Brand
Red Lion
Series
CUB5R

Electrical

Input Ratings
10 mA
Input Type
Current
Supply Voltage
9 - 28 VDC
Terminal Type
Screw Terminals

Mechanical

Housing Material
High impact plastic case
Mounting Method
Panel Mounting
Display Colour/Type
Reflective LCD
Display Lines
1

Dimensions & Physical Data

Depth
47.2 mm
Height
39.1 mm
Width
74.9 mm
Panel Cut-Out Size
68 W mm x 33 H mm
Display Size
8 digit LCD 0.46" (11.7 mm) high digits

Environmental

Storage Temperature
-35 to 85 °C
Operating Temperature
-35 to 75 °C
IP Rating
IP65

Safety, Standards & Compliance

Compliance Standards
CE ApprovedEN 61326-1 Immunity to Industrial LocationsEmission CISPR 11 Class ASafety requirements for electrical equipment for measurement, control, andlaboratory use:EN 61010-1: General RequirementsEN 61010-2-030: Particular Requirements for Testing and MeasuringCircuits
Hazardous Location Ratings
RoHS CompliantUL Recognized Component: File #E179259UL Listed: File #E137808Type 4X Indoor/Outdoor Enclosure rating (Face only)
