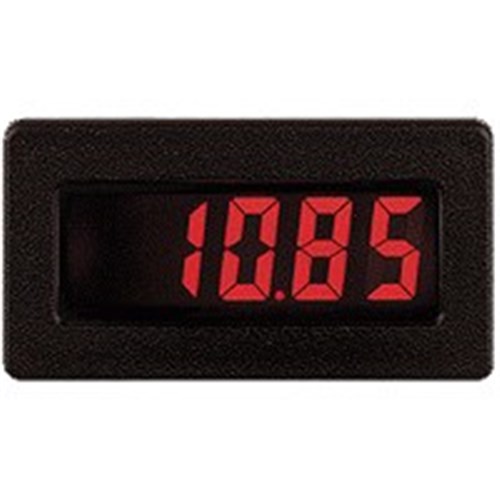

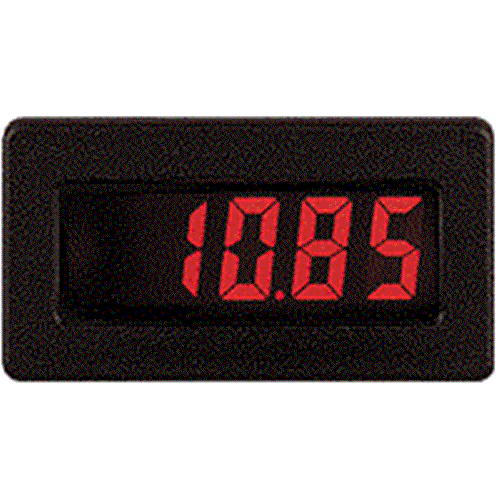

Product Code: CUB4V020

Measures 0-199.9 mV with high precision
Operates on 9-28 VDC power supply
Clear 3.5-digit LCD with red LED backlight
Compact display size of 0.6 inches
Durable IP65 protection rating

Specifications

General

Product Type

DC voltmeter

Brand

Red Lion

Series

CUB4

Electrical

Input Ratings ±199.9 mV DC, ±1.999 V DC, ±19.99 V DC, ±199.9 V DC	Input Type DC voltage	Supply Voltage 9 to 28 V DC
Terminal Type Screw-clamp terminals	Analog Inputs 1

Mechanical

Housing Material

High-impact plastic

Mounting Method

Panel

Dimensions & Physical Data

Depth

49.8 mm

Height

39.1 mm

Width

74.9 mm

Environmental

Storage Temperature

-40 to 80 °C

Operating Temperature

0 to 60 °C

IP Rating

NEMA 4X, IP65 front; IP20 rear

Communication & Control

Expandable Communications

Safety, Standards & Compliance

Compliance Standards

CE, RoHS, UL Recognized, EN 61326-1, CISPR 11 Class B, IEC/EN 61010-1

VOLTMETER W/ RED BACKLIGHTING 3.5 DIGIT,15.2mm LCD,39mmX75mm NEMA 4X/IP65 REDLION

Product Code: CUB4V020
