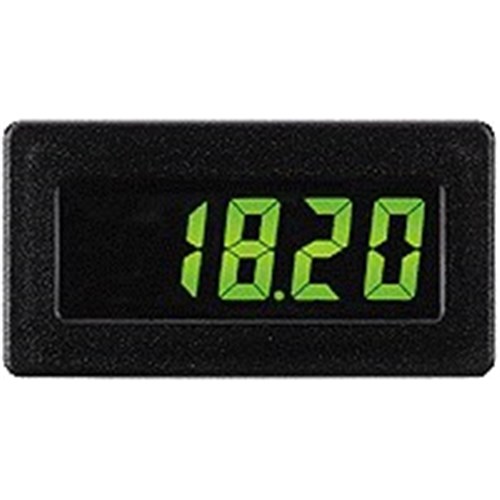

VOLTMETER W/ YELLOW/GREEN BACKLIGHTING,DC,3.5 DIGIT 15.2mm,39mmX75mm LCD REDLION

Product Code: CUB4V010

  • Operates on 9-28 VDC
  • Compact 3.5-digit LCD display
  • Panel mount design for easy installation
  • IP65 protection against dust and water
  • Complies with EN, IEC, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Voltmeter
Brand
Red Lion
Series
CUB4

Electrical

Input Ratings
±199.9 mV DC, ±1.999 V DC, ±19.99 V DC, ±199.9 V DC
Input Type
DC voltage
Supply Voltage
9V to 28V DC
Terminal Type
Screw-clamp terminals
Analog Inputs
1

Mechanical

Housing Material
High-impact plastic

Dimensions & Physical Data

Depth
49.8mm
Height
39.1mm
Width
74.9mm

Environmental

Storage Temperature
-40°C to 80°C
Operating Temperature
0°C to 60°C
IP Rating
NEMA 4X, IP65 front; IP20 rear

Communication & Control

Expandable Communications
No

Safety, Standards & Compliance

Certifications / Approvals
CE, RoHS, UL Recognized, EN 61326-1, CISPR 11 Class B, IEC/EN 61010-1
