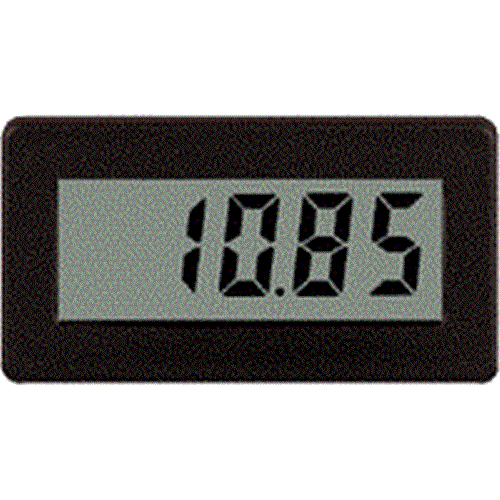

Red Lion CUB4LP00 Loop Powered Process Indicator 3.5 Digit LCD, Reflective Display

Product Code: CUB4LP00

  • 3.5-digit reflective LCD display
  • Compact 0.6-inch screen size
  • IP65-rated for dust and water protection
  • Operates in temperatures from 0 to 60°C
  • Suitable for up to 85% humidity
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Loop Powered Process Indicator
Brand
Red Lion
Series
CUB4

Electrical

Input Ratings
4 to 20 mA 10 to 50 mA
Input Type
Current
Supply Voltage
9-28 VDC
Terminal Type
Screw-clamp terminals

Mechanical

Housing Material
High impact plastic case
Mounting Method
Panel Mounting
Display Colour/Type
Positive image reflective LCD
Display Lines
1

Dimensions & Physical Data

Depth
47.2 mm
Height
39.1 mm
Width
74.9 mm
Panel Cut-Out Size
68 W mm x 33 H mm
Display Size
3½-digit (-1999 to 1999), 0.6" (15.2 mm) high digits. Minus (-)sign is displayed when voltage or current is negative.

Environmental

Storage Temperature
-40° to 80°C
Operating Temperature
0° to 60°C
IP Rating
IP65

Safety, Standards & Compliance

Compliance Standards
CE ApprovedEN 61326-1 Immunity to Industrial LocationsEmission CISPR 11 Class BIEC/EN 61010-1RoHS CompliantUL Recognized Component: File #E179259
Hazardous Location Ratings
Class I, Division 2 /Class II, Division 2 / Class III, Division 2.Type 4X Enclosure rating (Face only)
