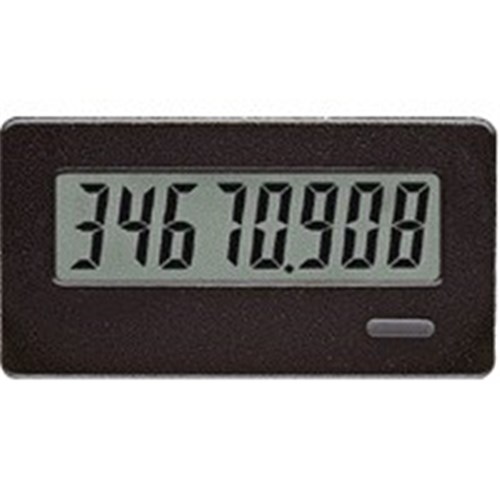

COUNTER W/ REFLECTIVE DISPLAY 8 DIGIT,11.7mm LCD,39mmX75mm 5KHz,NEMA 4X/IP65 REDLION

Product Code: CUB4L800

  • 8-digit LCD display for clear visibility
  • Compact panel mount design
  • IP65 rated for dust and water resistance
  • Operates at 3.6 VDC with low power consumption
  • Complies with EN, IEC, RoHS, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
8 - Digit Counter
Brand
Red Lion
Series
CUB4

Electrical

Input Ratings
Count input: 0 to 3.6 V DC sinking or 0 to 28 V DC sourcing, 5 kHz max; reset input: 1.5 V DC max active low
Input Type
Count input, reset input; sinking or sourcing
Supply Voltage
3.6V DC battery
Terminal Type
Screw-clamp terminals

Mechanical

Housing Material
High-impact plastic

Dimensions & Physical Data

Depth
34.5mm
Height
39.1mm
Width
74.9mm

Environmental

Storage Temperature
-30°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
NEMA 4X, IP65 front

Communication & Control

Expandable Communications
No

Safety, Standards & Compliance

Certifications / Approvals
CE, RoHS, UL Recognized, EN 61326-1, CISPR 11 Class B, IEC/EN 61010-1
