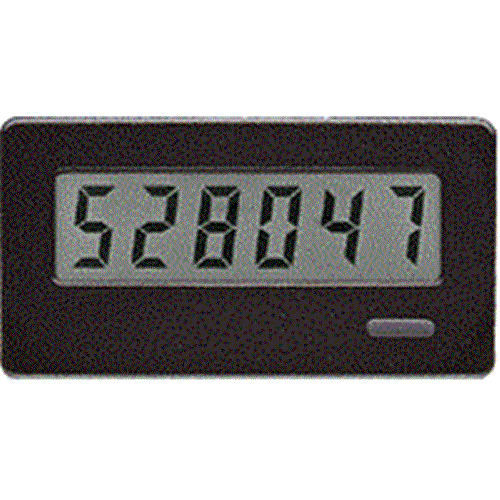

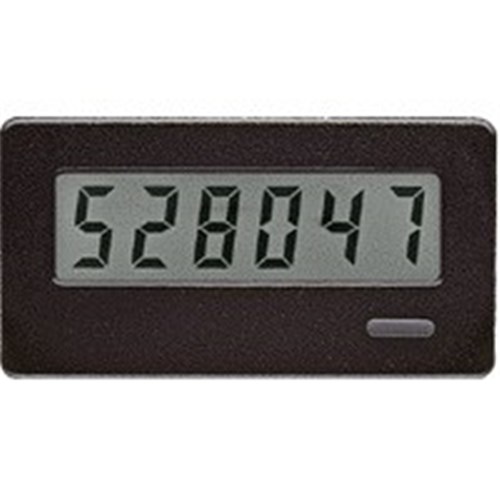

Product Code: CUB4L000

6-digit LCD reflective display
Compact size: 74.9 x 39.1 x 38.3 mm
IP65 protection rating
Operates from 0 to 60°C
CE, RoHS, UL recognized

Specifications

General

Product Type

6-digit counter

Brand

Red Lion

Series

CUB4

Electrical

Input Ratings Count input: 0 to 3.6 V DC sinking or 0 to 28 V DC sourcing, 5 kHz max; reset input: 1.5 V DC max active low	Input Type Count input, reset input; sinking or sourcing	Supply Voltage 3.6 V DC battery
Terminal Type Screw-clamp terminals

Mechanical

Housing Material

High-impact plastic

Mounting Method

Panel

Dimensions & Physical Data

Depth

34.5 mm

Height

39.1 mm

Width

74.9 mm

Environmental

Storage Temperature

-30 to 85 °C

Operating Temperature

0 to 60 °C

IP Rating

NEMA 4X, IP65 front

Communication & Control

Expandable Communications

Safety, Standards & Compliance

Compliance Standards

CE, RoHS, UL Recognized, EN 61326-1, CISPR 11 Class B, IEC/EN 61010-1

COUNTER W/ REFLECTIVE DISPLAY 6 DIGIT,12.2mm LCD,39mmX75mm 5KHz,NEMA 4X/IP65 REDLION

Product Code: CUB4L000
