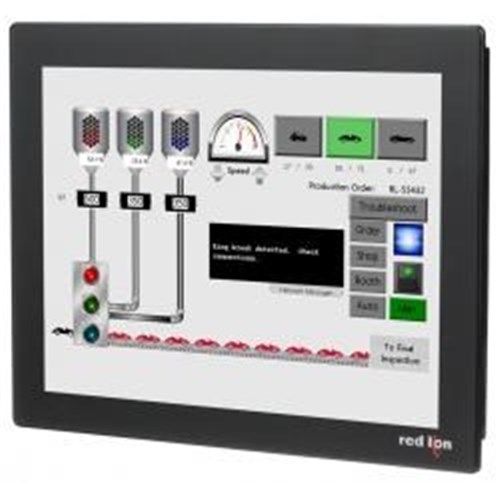

Red Lion CR30001500000420 Industrial Operator Interface 15in Widescreen Format 480x272px, Colour Display 10-30VDC

Product Code: CR30001500000420

  • 15-inch widescreen colour display
  • Operates on 10-30 VDC power
  • IP66-rated for dust and water protection
  • Functions in -10 to 50°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Operator Interface
Brand
Red Lion
Series
CR3000

Electrical

Power Consumption
17.5W (10V)
Supply Voltage
10V to 30V DC
Terminal Type
Screw terminal
Touch Type
Four-wire resistive analog

Mechanical

Housing Material
Polycarbonate
Display Colour/Type
16M Colors

Dimensions & Physical Data

Depth
67.2mm
Height
290.1mm
Width
364.6mm
Panel Cut-Out Size
340.11mm x 259.08mm
Display Size
15.0"

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-10°C to 50°C
IP Rating
IP66

Communication & Control

Ethernet Port Speed
10 Mbps/100 Mbps
Ethernet Ports
2
Expandable Communications
Yes, via one optional expansion module
Fieldbus Interface
Supports one expansion communication module for CANOPEN, J1939, PROFIBUS, or DeviceNet
Serial Ports
4
USB Port
2
Supported Serial Protocols
Supports up to ten protocols simultaneously

Safety, Standards & Compliance

Hazardous Location Ratings
Class I, Division 2, Groups A, B, C, and D T4
Certifications / Approvals
EN 61326-1, IEC/EN 61010-1, RoHS
