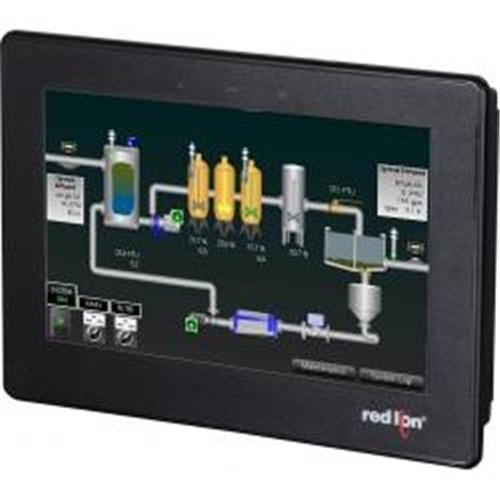

Red Lion CR30000700000420 Industrial Operator Interface 7in Widescreen Format 480x272px, Colour Display 10-30VDC

Product Code: CR30000700000420

  • 10-30 VDC rated voltage
  • Operates in -10 to 50°C range
  • IP66 protection rating
  • 7-inch widescreen display
  • Colour display with 480x272px resolution
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Operator Interface
Brand
Red Lion
Series
CR3000

Electrical

Power Consumption
9.0W (10V)
Supply Voltage
10V to 30V DC
Terminal Type
Screw terminal
Touch Type
Four-wire resistive analog

Mechanical

Housing Material
Polycarbonate
Display Colour/Type
16M Colors

Dimensions & Physical Data

Depth
50.8mm
Height
138020mm
Width
193.98mm
Panel Cut-Out Size
179.32mm x 123.7mm
Display Size
7.0"

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-10°C to 50°C
IP Rating
IP66

Communication & Control

Ethernet Port Speed
10 Mbps/100 Mbps
Ethernet Ports
2
Expandable Communications
Yes, via one optional expansion module
Fieldbus Interface
Supports one expansion communication module for CANOPEN, J1939, PROFIBUS, or DeviceNet
Serial Ports
4
USB Port
2
Supported Serial Protocols
Supports up to ten protocols simultaneously

Safety, Standards & Compliance

Hazardous Location Ratings
Class I, Division 2, Groups A, B, C, and D T4
Certifications / Approvals
EN 61326-1, IEC/EN 61010-1, RoHS
