Product Code: CR10000700000210

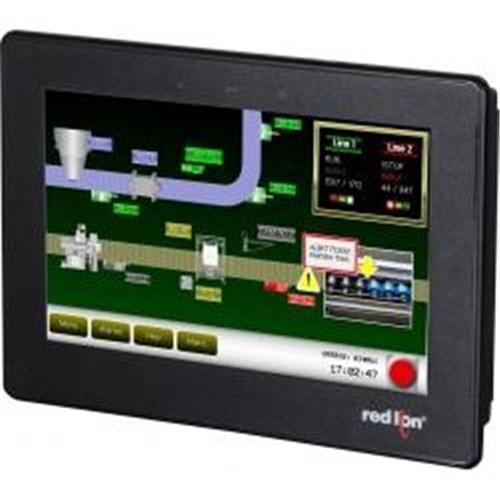

7" TFT colour touch screen display
IP66 rated for robust protection
Operates efficiently from -10 to 50°C
Powered by 24 VDC

Specifications

General

Product Type

Industrial Operator Interface

Brand

Red Lion

Series

CR1000

Electrical

Supply Voltage

24 VDC ±20%

Sunlight Readable

430 cd/m²

Touch Type

Resistive Analog

Mechanical

Housing Material

Polycarbonate

Display Colour/Type

16M Colors

Dimensions & Physical Data

Depth 50.8mm	Height 138.02mm	Width 193.98mm
Panel Cut-Out Size 179.32mm x 123.7mm	Display Size 7.0"

Environmental

Storage Temperature

-20°C to 70°C

Operating Temperature

-10°C to 50°C

IP Rating

IP66

Communication & Control

Ethernet Port Speed 10 Mbps/100 Mbps	Ethernet Ports 1	Serial Ports 2
USB Port 1	Supported Ethernet Protocols Up to 4 Ethernet protocols simultaneously

Safety, Standards & Compliance

Certifications / Approvals

IEC/EN 61000-6-2, IEC/EN 61000-6-4, IEC/EN 61010-1, RoHS

Red Lion CR10000700000210industrial Operator Interface 7in TFT Colour 24VDC 1 Ethernet Port 2 Serial Ports

Product Code: CR10000700000210
