Specifications

General

Product Type

DIN TIMERS

Brand

Red Lion

Series

C48T

Electrical

Output Ratings NPN Open Collector: ISNK = 100 mA max. @ VOL = 1.1 VDC max; VOH = 30 VDC max. PNP Open Collector: ISRC = 100 mA max.(See note); VOH = 12 VDC ±15% (using internal supply); VOH = 13 to 30 VDC (using external supply).Relay: Rating = 5 A @ 250 VAC, 30 VDC (resistive load),1/10 HP @ 120 VAC (inductive load)Programmable Timed Output(s): User selectable output time resolution0.01 Second Resolution: 0.01 to 99.99 seconds, ± 0.01% + 10 msec max.0.1 Second Resolution: 0.1 to 999.9 Seconds, ± 0.01% + 100 msec max.	Input Ratings Current Sinking (active low): VIL = 1.5 VDC max, 22 K pull-up to 5VDC.Current Sourcing (active high): VIH = 3.5 VDC min., VIN max = 30 VDC;22 K pull-down.	Input Type Current
Output Type Solid-state/Relay/Programmable Timed Output(s)	Power Consumption 9 VA	Supply Voltage 85 to 250 VAC
Terminal Type Screw Terminal

Mechanical

Housing Material Plastic	Mounting Method Panel Mounting	Display Colour/Type Top: RedBottom: Green
Display Lines 2

Dimensions & Physical Data

Depth 105.9 mm	Height 49.5 mm	Width 49.5 mm
Panel Cut-Out Size 45W mm x 45H mm	Display Size Main Display: 0.3" (7.62 mm) high digits Secondary Display: 0.2" (5.08 mm) high digits

Environmental

Storage Temperature

-40°C to 70°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Safety, Standards & Compliance

Compliance Standards

Immunity to EN 50082-2Emissions to EN 50081-2UL Recognized Component, File #E137808Recognized to U.S. and Canadian requirements under the ComponentRecognition Program of Underwriters Laboratories, Inc.

Hazardous Location Ratings

NEMA 4X

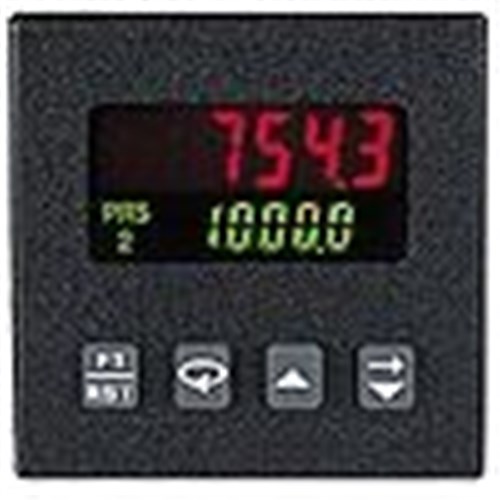

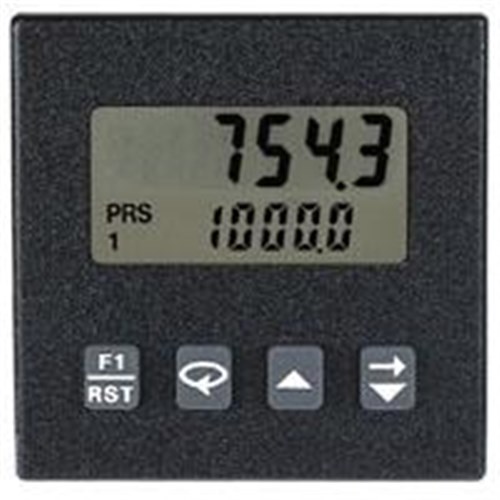

Red Lion C48TD102 Preset Timer Dual Relay-Output 85-250VAC

Product Code: C48TD102
