Product Code: C48CS113

Dual colour LCD display for clear visibility
Compact panel mount design at 49.5 mm width
IP65 rating ensures dust and water resistance
Operates efficiently between 0 to 50°C
Complies with EN and UL standards for safety

Specifications

General

Product Type

COUNTERS

Brand

Red Lion

Series

C48C Series

Electrical

Output Ratings 12 VDC	Input Ratings Current Sinking : VIL = 1.5 VDC max, 22 K? pull-up to 5 VDC.Current Sourcing : VIH = 3.5 VDC min., VIN max = 30 VDC; 22 K? pulldown.	Input Type Current
Output Type Current	Power Consumption 5.5 W/ 7 VA	Supply Voltage 18-36 VDC/24 VAC
Terminal Type Screw Terminals

Mechanical

Housing Material Black plastic case	Mounting Method Panel	Display Colour/Type Red (top line) and green (bottom line)backlighting
Display Lines 2

Dimensions & Physical Data

Depth 105.9 mm	Height 49.5 mm	Width 49.5 mm
Panel Cut-Out Size 45 W mm x 45 H mm	Display Size Main Display: 0.3” (7.62 mm) high digitsSecondary Display: 0.2” (5.08 mm) high digits

Environmental

Storage Temperature

-40°C to 70°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Safety, Standards & Compliance

Compliance Standards

CE ApprovedEN 61326-1 Immunity to Industrial LocationsEmission CISPR 11 Class ASafety requirements for electrical equipment for measurement, control, andlaboratory use:EN 61010-1: General RequirementsEN 61010-2-030: Particular Requirements for Testing and MeasuringCircuits

Hazardous Location Ratings

RoHS Compliant UL Recognized Component: File #E137808 Type 4X Indoor Enclosure rating (Face only)

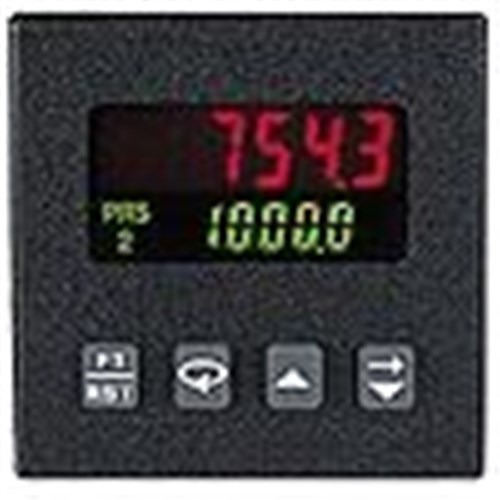

Red Lion C48CS113 Single Preset Counter 24VAC 6 Digit LCD, Dual Colour Characters Display

Product Code: C48CS113
