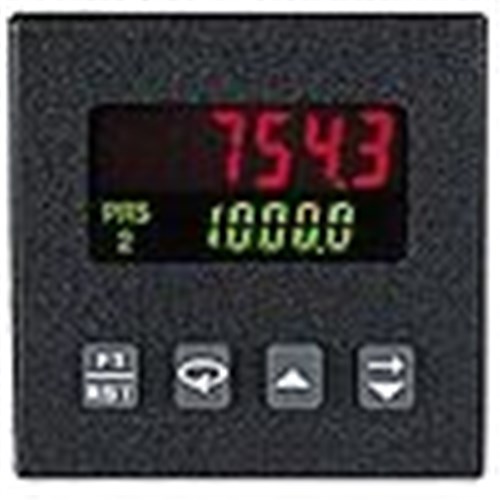

C48C COUNTER, STACKABLE 85-250VAC,SSR OUT,NEMA 4X/IP65 LCD, EEPROM REDLION

Product Code: C48CS103

  • Dual colour LCD display for clear readings
  • Compact design with 49.5 mm width and height
  • IP65 rated for dust and water resistance
  • Operates within 0 to 50°C temperature range
  • Complies with EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Single Preset Counter
Brand
Red Lion
Series
C48C

Electrical

Digital Outputs
2
Output Ratings
0.2083333333
Output Type
NPN open collector, relay
Power Consumption
9 VA max
Supply Voltage
85 to 250 V AC, 11 to 14 V DC

Mechanical

Housing Material
Plastic
Mounting Method
Panel mount

Environmental

Storage Temperature
-40 to 70 °C
Operating Temperature
0 to 50 °C
IP Rating
IP65

Safety, Standards & Compliance

Compliance Standards
NEMA 4X, UL E137808

Documents

IPD Product Catalogue V17
