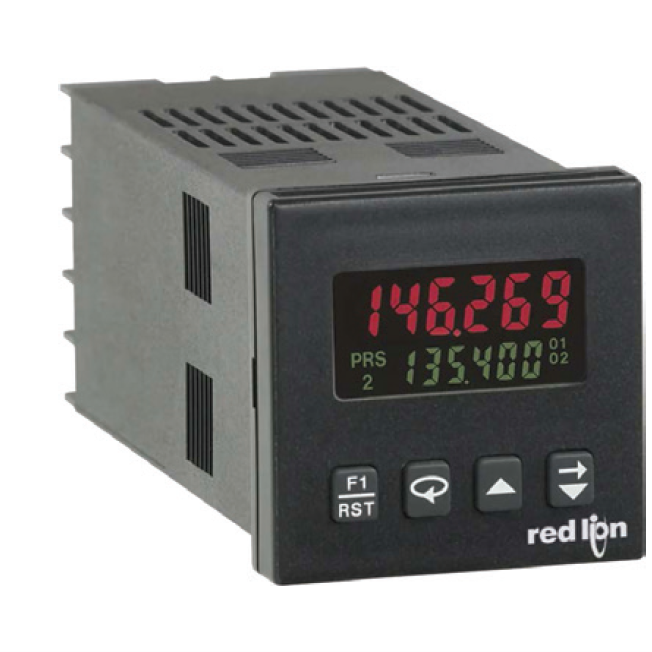

C48C BATCH COUNTER, STACKABLE DC, BACKLIT LCD,NPN OC NEMA 4X/IP65,SCREW REDLION

Product Code: C48CB110

  • 24 VDC rated voltage for reliable operation
  • 6-digit backlit LCD display for easy reading
  • Compact panel mount design, IP65 protection
  • Operates in temps from 0 to 50°C
  • Complies with EN and RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Batch Counter
Brand
Red Lion
Series
C48C

Electrical

Digital Outputs
3
Output Type
NPN open collector
Power Consumption
5.5W max DC, 7 VA max AC
Supply Voltage
18 to 36 V DC, 24 V AC ±10%

Mechanical

Housing Material
Plastic

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 50°C
IP Rating
IP65

Safety, Standards & Compliance

Certifications / Approvals
NEMA 4X, UL E137808
