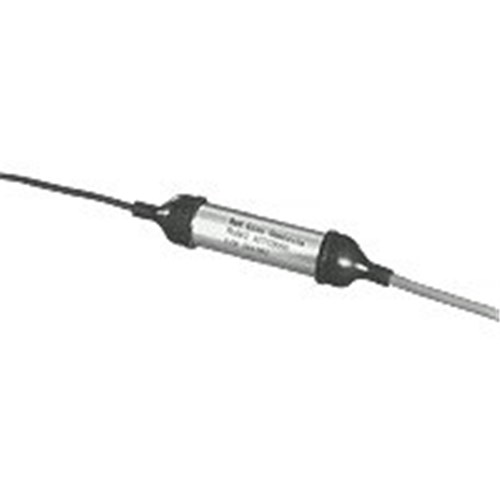

Red Lion ASTC0000 In-Line Amplifier 9-30VDC

Product Code: ASTC0000

  • Supports 9-30 VDC for versatile applications
  • Operates in -18 to 60°C environments
  • Compact design with a length of 114.3 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Amplifier
Brand
Red Lion
Series
ASTC

Electrical

Power Consumption
10.4W
Rated Frequency
10000Hz
Supply Voltage
9V to 30V DC
Input
Input sensitivity: 20 mV Maximum input: 16 Vrms
Output
VOH = 30 VDC max VOL = 1 Vmax. @ 30mA

Mechanical

Material
Epoxy encapsulated #304 stainless steel case. Neoprene strain-reliefs on each end.

Dimensions & Physical Data

Depth
22.9mm
Length
114.3mm
Weight
0.00065kg

Environmental

Operating Temperature
-18°C to 60°C

Documents

IPD Product Catalogue V17
