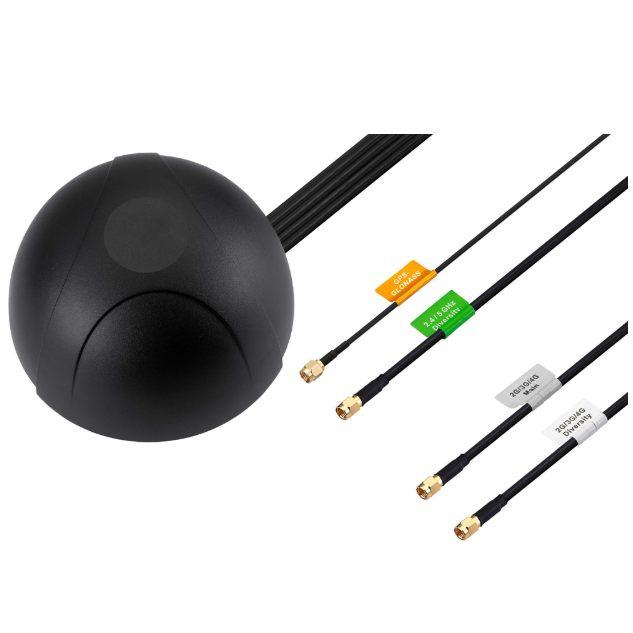

Red Lion ANT-MA760AABIC003 WiFi and GPS Combination Dome Antenna 3-5VDC

Product Code: ANT-MA760AABIC003

  • Operates on 3-5 VDC
  • Compact height of 85.7 mm
  • Durable Wonderloy PC-450, ABS Alloy
  • IP67 rated for water/dust protection
  • Functions in -40 to 85°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
M2M Antenna
Brand
Red Lion
Series
Pantheon MA760

Electrical

Channel Isolation
20dB+
Power Consumption
(3.3V) 2 A
Supply Voltage
3V to 5V DC
Terminal Type
SMA male, RP-SMA male

Mechanical

Housing Material
Wonderloy PC-540 PC/ABS alloy

Dimensions & Physical Data

Height
85.7mm
Width
(Diameter) 145.6mm

Environmental

Storage Temperature
-40°C to 90°C
Operating Temperature
-40°C to 85°C
IP Rating
IP67

Safety, Standards & Compliance

Certifications / Approvals
RoHS Compliant

Documents

IPD Product Catalogue V17
