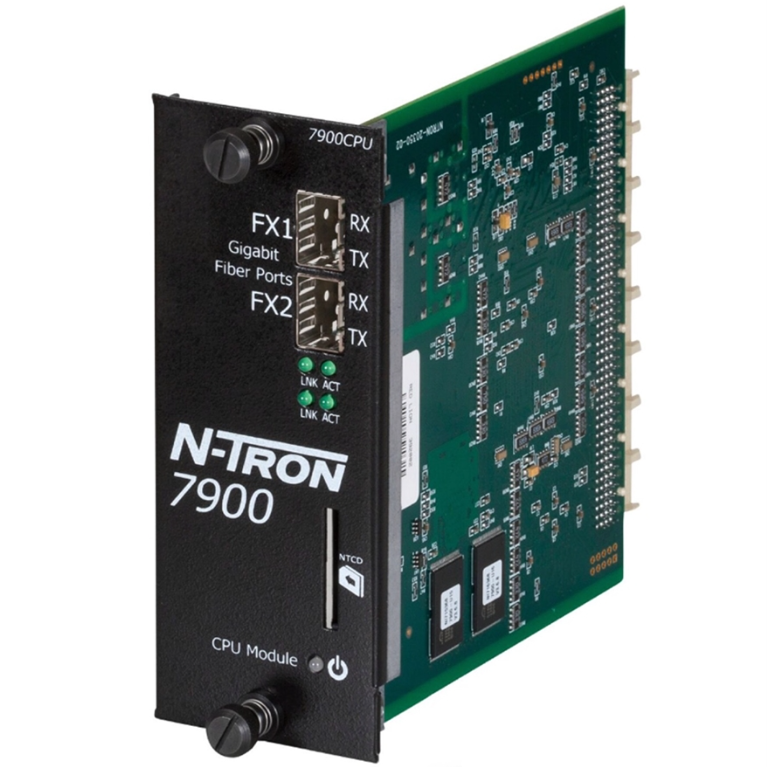

Product Code: 7900CPU

Managed network device for precise control
Operates on 10-30 VDC power supply
Supports environments from -20 to 70°C
Handles humidity levels between 10-95%
Rated current of 1.53 A for efficient performance

Specifications

General

Product Type

CPU Module

Brand

N - Tron

Series

7900

Electrical

Input Voltage

24V DC

Mechanical

Mounting

DIN rail

Dimensions & Physical Data

Depth 142mm	Height 130mm	Weight 2.3kg
Width 228mm

Environmental

Operating Temperature

-20°C to 70°C

IP Rating

IP20

Communication & Control

Connectors/Input/Output 2xSFP	Total Ports 2	Fiber Connector Type SFP
Network Management SNMP v1, v2, v3 and web browser management

Safety, Standards & Compliance

Standards and Approvals

UL 60950-1; UL 508; ANSI/ISA 12.12.01-2007; CAN/CSA-C22.2 No.60950; CAN/CSA-C22.2 No.142; CAN/CSA-C22.2 No.213; EN 61000-6-2; IEC 61000-4-2 (ESD); IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EMC Directive 2004/108/EC; ABS; GOST-R

Red Lion 7900CPU CPU Module 10-30VDC

Product Code: 7900CPU
