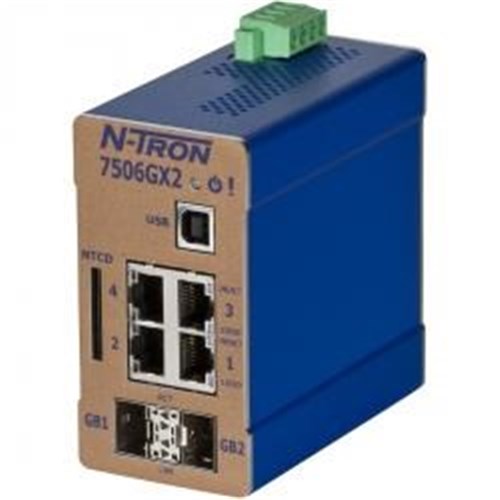

Red Lion 7506GX2-LX-10 Managed Industrial Ethernet Switch 4 x 10/100/1000 Base-TX RJ45 2 x Gigabit -Port 10-49VDC

Product Code: 7506GX2-LX-10

  • LC connection type for reliable performance
  • DIN Rail mounting for easy installation
  • Supports 10-49 VDC voltage range
  • Operates in extreme temps: -40 to 80°C
  • Complies with multiple global standards and approvals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
98.3mm
Height
95.3mm
Weight
0.48kg
Width
50.8mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
4 x RJ45, 2 x SFP
Total Ports
6
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL/cUL Listed to UL 1604; ANSI/ISA 12.12.01-2007 Class I Div 2 Groups A–D (T4A); GOST-R Certified
