Products

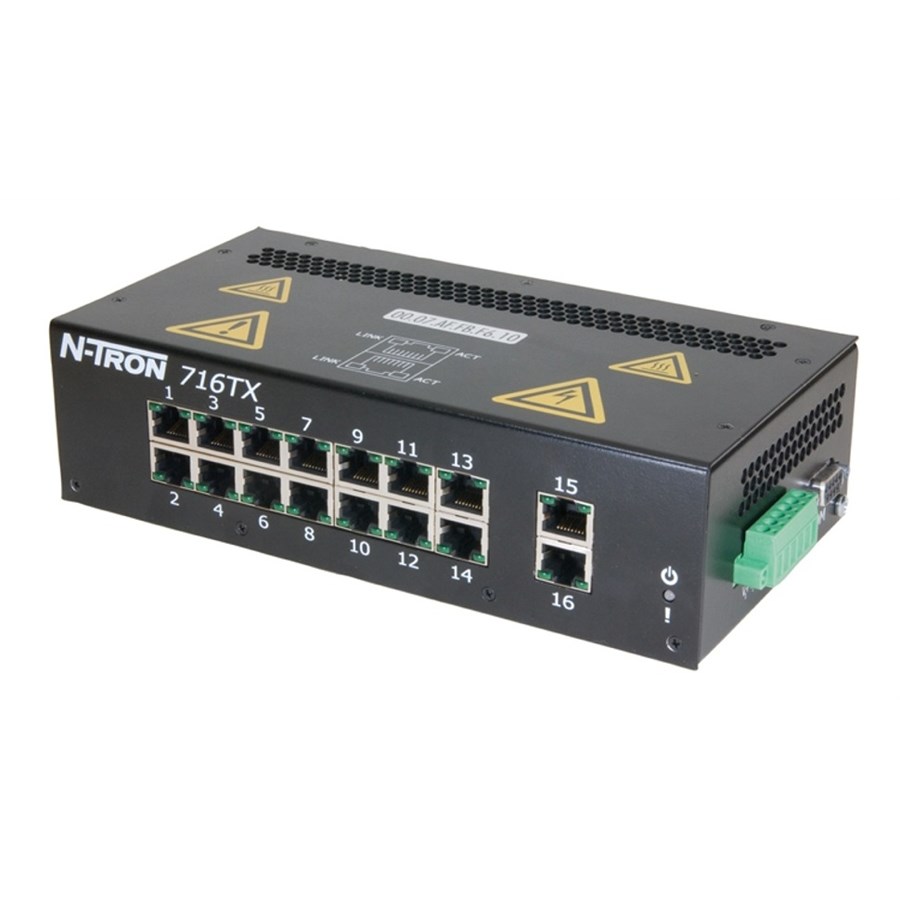

Red Lion 716TX Managed Industrial Ethernet Switch 16 x 10/100 Base-TX RJ45 -Port 10-30VDC

Product Code: 716TX

  • Managed switch for controlled networking
  • Compact DIN Rail mount design
  • Wide temp range: -40 to 70°C
  • 16 ports with 10/100 Base-TX RJ-45
  • Complies with ATEX, IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
148.6mm
Height
58mm
Weight
1.49kg
Width
209.5mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
16x RJ45
Fiber Distance Rating
2 km
Total Ports
16
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL/cUL Listed to UL 1604; ANSI/ISA 12.12.01-2007 Class I Div 2 Groups A–D (T4A); GOST-R Certified

Documents

IPD Product Catalogue V17
