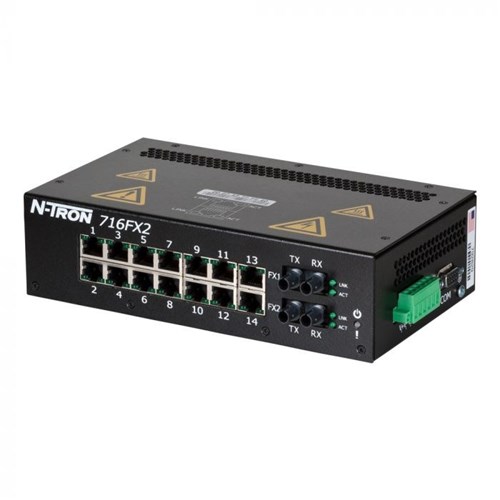

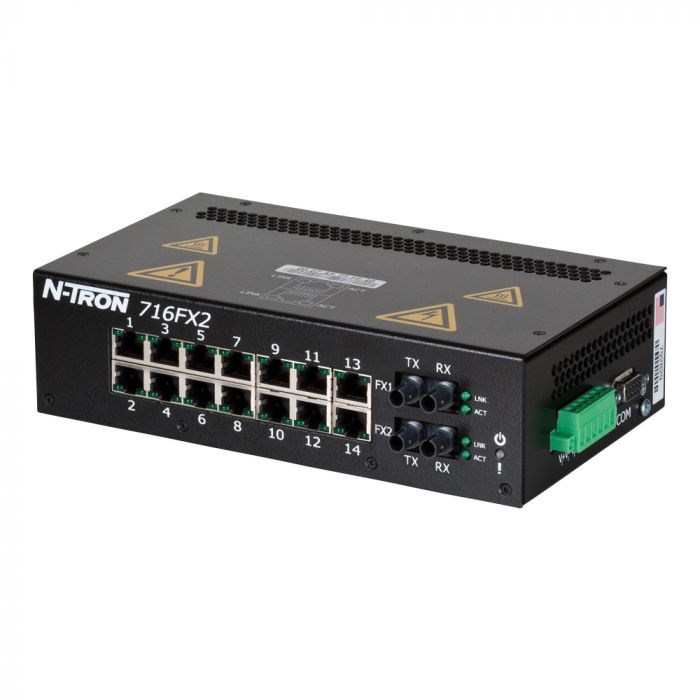

Red Lion 716FX2-ST Managed Industrial Ethernet Switch 14 x 10/100 Base-TX RJ45 2 x 100 Base-FX -Port 10-30VDC

Product Code: 716FX2-ST

  • Managed switch with FX Port-ST connection
  • DIN rail mounting for easy installation
  • Wide temp range: -40 to 70°C
  • Supports 14x RJ-45, 2x FX ports
  • Complies with multiple global standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
148.6mm
Height
58mm
Weight
1.49kg
Width
209.5mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
14x RJ45, 2x ST
Fiber Distance Rating
2 km
Total Ports
16
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL/cUL Listed to UL 1604; ANSI/ISA 12.12.01-2007 Class I Div 2 Groups A–D (T4A); GOST-R Certified
