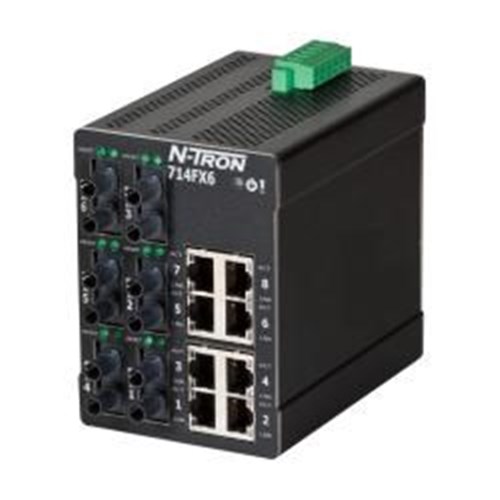

Red Lion 714FXE6-ST-15 Managed Industrial Ethernet Switch 8 x 10/100 Base-TX RJ45 6 x 100 Base-FX -Port 10-49VDC

Product Code: 714FXE6-ST-15

  • Supports 8 RJ-45 & 6 FX ports for versatile connectivity
  • Operates in extreme temps from -40 to 70°C
  • DIN rail mountable for easy installation
  • Complies with FCC, CE, RoHS standards
  • Wide voltage range of 10-49 VDC
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Managed Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
109mm
Weight
2.041kg
Width
79mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
14x RJ45, 2x SC
Fiber Distance Rating
15 km
Total Ports
14
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL/cUL Listed to UL 1604; ANSI/ISA 12.12.01-2007 Class I Div 2 Groups A–D (T4A); GOST-R Certified
