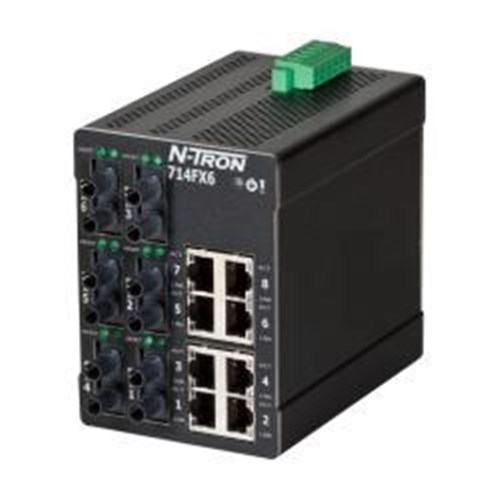

Red Lion 714FX6-ST Managed Industrial Ethernet Switch 8 x 10/100 Base-TX RJ45 6 x 100 Base-FX -Port 10-49VDC

Product Code: 714FX6-ST

  • Supports 8x10/100 Base-TX RJ-45, 6x100 Base-FX ports
  • DIN Rail mount for easy installation
  • Wide operating temp range: -40 to 70°C
  • Rated voltage range: 10-49 VDC
  • Complies with FCC, CE, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Managed Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
109mm
Weight
1.359kg
Width
79mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
8x RJ45, 6x ST, 1x USB Type B
Fiber Distance Rating
2 km
Total Ports
14
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL 508 Listed; ANSI/ISA 12.12.01-2007 Class I Div 2 Groups A–D (T4A); GOST-R Certified
