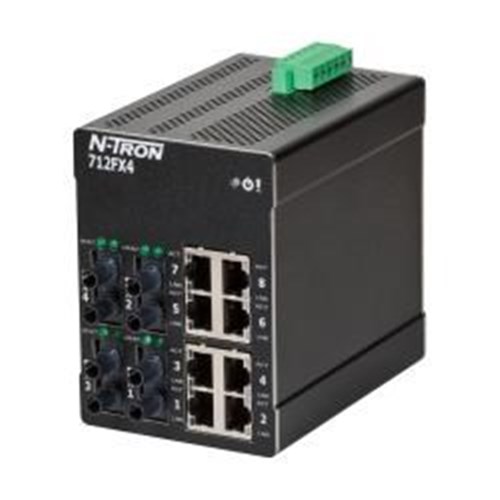

Red Lion 712FXE4-ST-15 Industrial Ethernet Switch 8 x 10/100 Base-TX RJ45 4 x 100 Base-FX -Port 10-49VDC

Product Code: 712FXE4-ST-15

  • Supports 8 RJ-45 and 4 FX ports
  • Operates in -40 to 70°C temp range
  • DIN Rail mounting for easy installation
  • Complies with multiple global standards
  • Wide voltage range: 10-49 VDC
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
109mm
Weight
1.359kg
Width
79mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
8x RJ45, 4x ST
Fiber Distance Rating
15 km
Total Ports
12
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
TÜV/GS Certified to EN 60950-1; GOST-R Certified

Documents

IPD Product Catalogue V17
