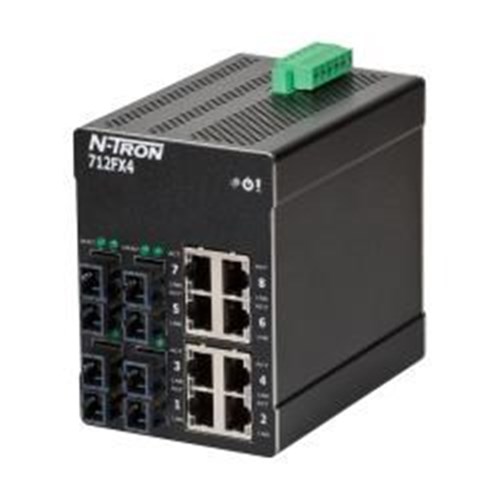

Red Lion 712FX4-SC Industrial Ethernet Switch 30VDC

Product Code: 712FX4-SC

  • 30 VDC rated voltage for optimal performance
  • Easy DIN Rail mounting system
  • High temperature tolerance up to 70°C
  • Complies with ATEX and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
109mm
Weight
1.361kg
Width
79mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
8x RJ45, 4x SC
Fiber Distance Rating
2 km
Total Ports
12
100Base Fiber
4
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL 508 Listed; ANSI/ISA-12.12.01-2007 Class I Div 2 Groups A–D (T4); GOST-R Certified
