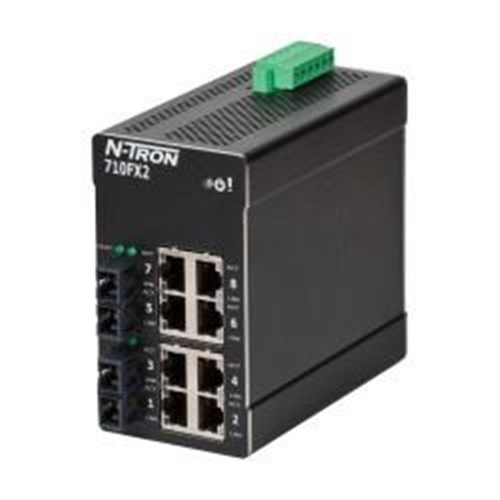

Red Lion 710FXE2-SC-40 Managed Industrial Ethernet Switch

Product Code: 710FXE2-SC-40

  • FX Port-SC connection for reliable networking
  • Operates within 10-49 VDC voltage range
  • Easy DIN Rail mounting system
  • Supports wide humidity range: 5-95%
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Managed Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
109mm
Weight
1.1325kg
Width
61mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
8x RJ45, 2x SC
Fiber Distance Rating
40 km
Total Ports
10
100Base Fiber
2
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL/cUL Listed (UL 508); ANSI/ISA-12.12.01-2007 Class I, Div 2, Groups A-D (T4); GOST-R Certified

Documents

IPD Product Catalogue V17
