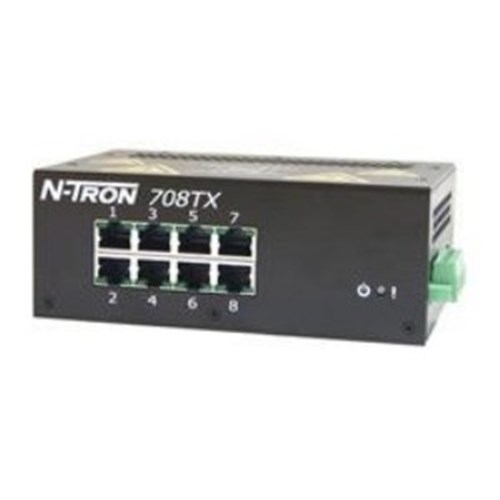

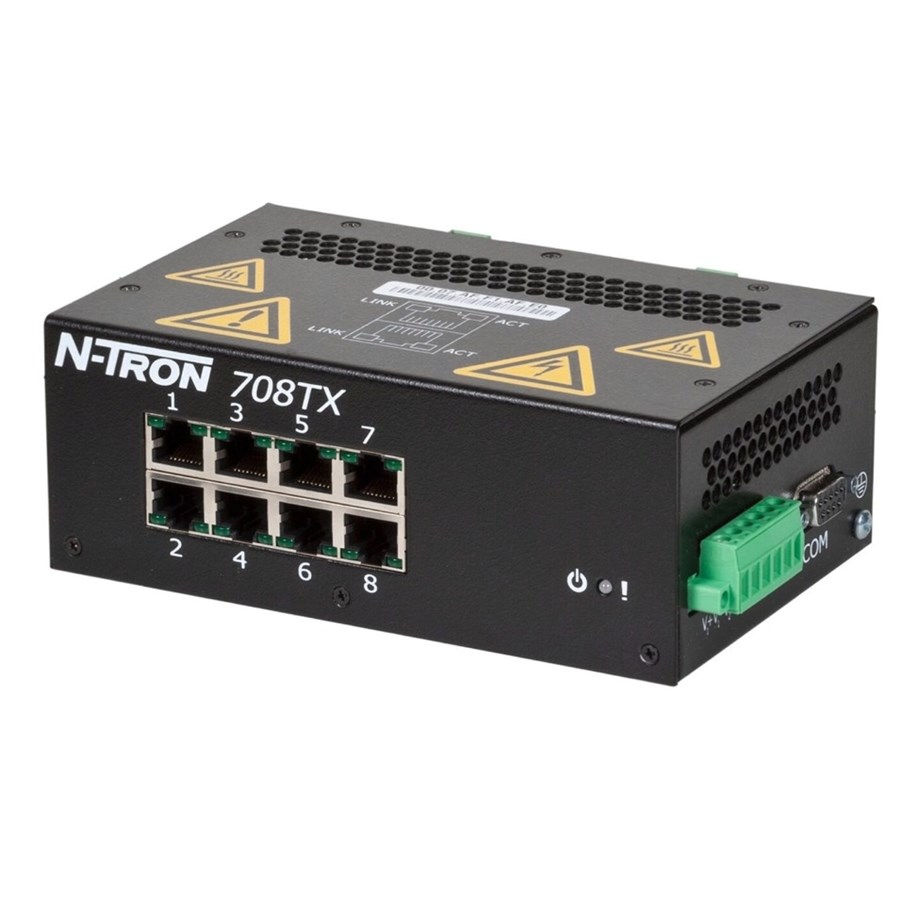

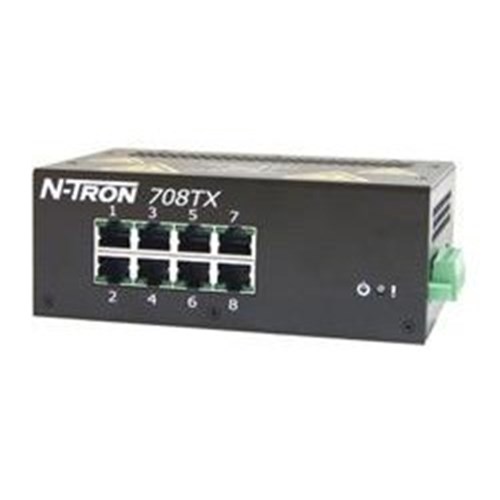

Red Lion 708TX Managed Industrial Ethernet Switch 30VDC

Product Code: 708TX

  • Managed switch for efficient network control
  • Compact DIN rail mounting design
  • Operates in extreme temps: -40 to 85°C
  • Supports up to 8000 MAC addresses
  • Complies with EN61000 and RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Managed Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
107.16mm
Height
58mm
Weight
0.8kg
Width
162mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
8x RJ45
Fiber Distance Rating
2 km
Total Ports
8
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
Full SNMP and Web Browser Management

Safety, Standards & Compliance

Standards and Approvals
UL/cUL Class I, Div 2, RoHS, T4A; ATEX II 3 G Ex nC (DEMKO 03 ATEX 0316686U); ABS & DNV Type-Approved;

Documents

IPD Product Catalogue V17
