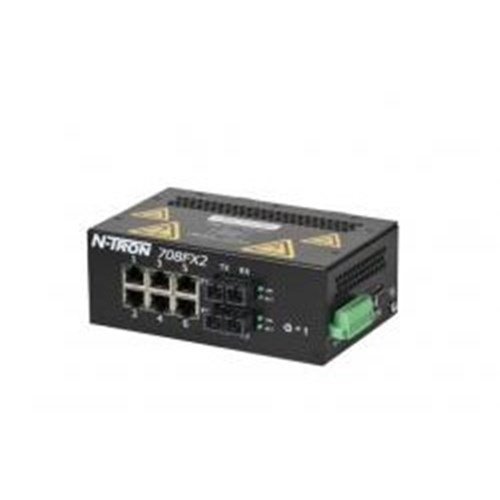

Red Lion 708FXE2-SC-40 Managed Industrial Ethernet Switch 6 x 10/100 Base-TX RJ45 2 x 100 Base-FX -Port 10-30VDC

Product Code: 708FXE2-SC-40

  • FX Port-SC connection type for reliable links
  • Supports 10-30 VDC voltage range
  • DIN Rail mounting for easy installation
  • Operates in extreme temps: -40 to 85°C
  • Complies with FCC/CE, UL/cUL, ATEX standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Managed Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
119.4mm
Height
58mm
Weight
1.359kg
Width
153mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
6x RJ45, 2x SC
Fiber Distance Rating
40 km
Total Ports
8
100Base Fiber
2
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/6

Safety, Standards & Compliance

Standards and Approvals
UL/cUL Class I, Div 2, Groups A–D, T4A; ATEX II 3 G Ex nC (DEMKO 03 ATEX 0316686U); ABS & DNV Type-Approved; GOST-R Certified

Documents

IPD Product Catalogue V17
