Specifications

General

Product Type

Industrial Ethernet Switch

Brand

N - Tron

Electrical

Input Voltage

18V to 49V DC

Mechanical

Housing Material

Metal

Mounting

Rack

Dimensions & Physical Data

Depth 147mm	Height 44.45mm	Weight 2.5kg
Width 483mm

Environmental

Operating Temperature

-40°C to 80°C

Communication & Control

Connectors/Input/Output 24x RJ45	Fiber Distance Rating 2 km	Total Ports 26
Traffic Management Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting	Network Management SNMP v1, v2, v3 and web browser management

Safety, Standards & Compliance

Standards and Approvals

• UL 508 and C22.2 No. 14 for Industrial Control Equipment ANSI/ISA-12.12.01 and C22.2 N0. 13-M1987 for Class I, Div. 2 Groups A, B, C and D. T4 • EMI: ANSI C63.4; FCC CFR Title 47, Part 15, Subpart B - Class A; ICES-003 – Class A • EMC: EN 61000-3-2/3 (Emissions), EN 55022 (Emissions), EN 55024 (Immunity), EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (RF), EN 61000-4-8 (PFMF), EN 61000-4-11 (VDI) • GOST-R certified

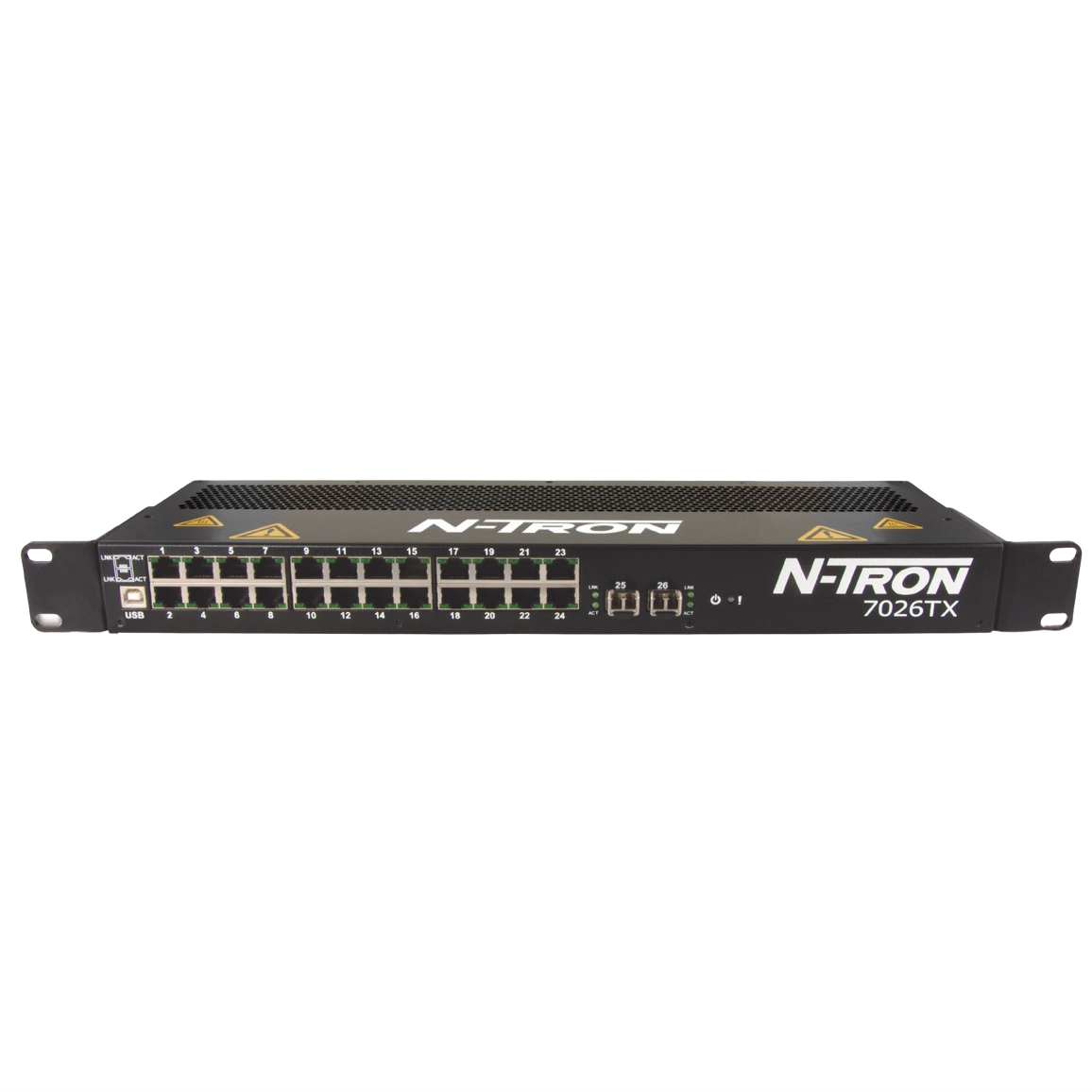

Red Lion 7026TX Industrial Ethernet Switch 18-49VDC

Product Code: 7026TX
