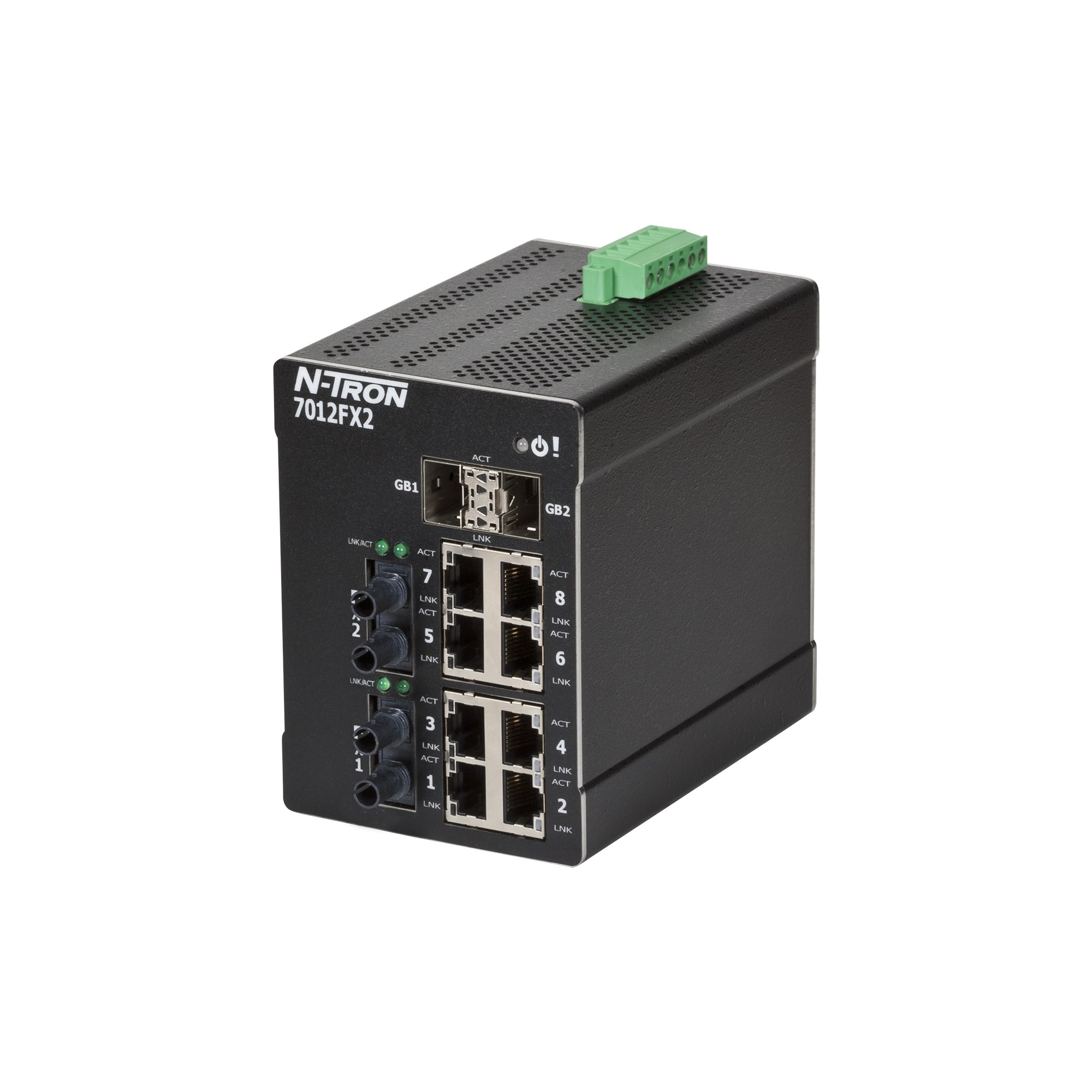

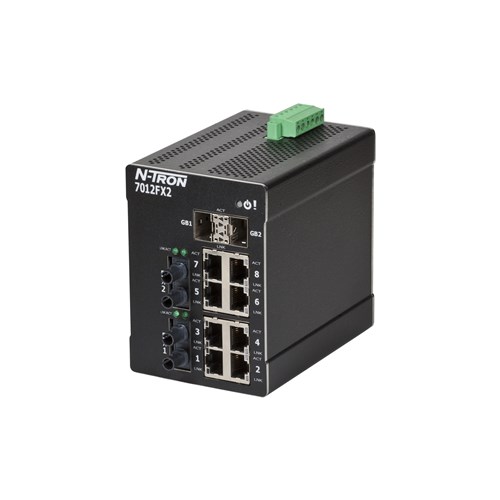

Red Lion 7012FX2-ST Industrial Ethernet Switch 8 x 10/100 Base-TX RJ45 2 x 100 Base-FX 2 x Gigabit -Port 10-49VDC

Product Code: 7012FX2-ST

  • Supports 8 x 10/100 Base-TX RJ-45 ports
  • Includes 2 x Gigabit ports for high-speed data
  • Operates in extreme temps: -40 to 70°C
  • DIN Rail mounting for easy installation
  • Certified with ATEX and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
N - Tron

Electrical

Input Voltage
10V to 49V DC
Redundancy Protocols
N-Ring Member/Manager, STP, RSTP, MSTP

Mechanical

Housing Material
Metal
Mounting
DIN rail

Dimensions & Physical Data

Depth
135mm
Height
108mm
Weight
1.1325kg
Width
78.41mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
10x RJ45, 2x ST
Fiber Distance Rating
2 km
Total Ports
12
100Base Fiber
2
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
UL 61010-1; UL 1604; CSA C22.2 No. 61010-1; ANSI/ISA-12.12.01-2007 Class I, Div 2, Groups A–D, T4A; EN 50155; IEEE 1613; NEMA TS 1/TS 2
