Products

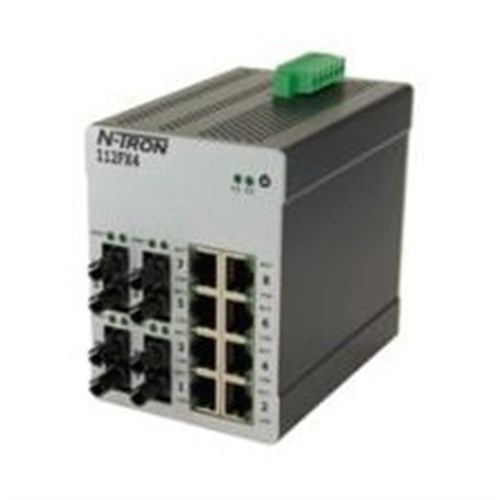

Red Lion 112FX4-ST Industrial Ethernet Switch FX Cable-Multimode (Max. 2km) (8) 10/100 Base-TX RJ45 (4) 100 Base-FX

Product Code: 112FX4-ST

  • Supports FX Port-ST connection
  • Operates in -40 to 80°C temp range
  • DIN Rail mounting for easy installation
  • Complies with FCC, UL, CE standards
  • Handles 5-95% humidity levels
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10-49 VDC (Regulated)

Mechanical

Housing Material
Hardened Metal
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
135.03mm
Height
107.95mm
Weight
0.73kg
Width
78.41mm

Environmental

Operating Temperature
-40°C to 80°C

Communication & Control

Connectors/Input/Output
8x RJ45, 4x ST
Total Ports
12
Fiber Connector Type
ST Connector

Safety, Standards & Compliance

Standards and Approvals
FCC: Title 47, Part 15, Subpart B, Class A; ANSI C63.4; ICES-003 UL /cUL: Class I, Div 2, Groups A, B, C, D and T4 CE: IEC 61000-4-2/3/4/5/6/8/11, EN 61000-6-2/4 Other: ABS Type Approval for Shipboard Applications; GOST-R certified; RoHS compliant

Documents

IPD Product Catalogue V17
