Product Code: 112FX4-SC

FX Port-SC connection type for reliable networking
Operates in extreme temps from -40 to 80°C
DIN Rail mounting for easy installation
Complies with multiple global standards and approvals
Supports 8 RJ-45 and 4 FX Multi Mode ports

Specifications

General

Product Type

Industrial Ethernet Switch

Brand

Red Lion

Series

N - Tron

Electrical

Input Voltage

10-49 VDC (Regulated)

Mechanical

Housing Material

Hardened Metal

Mounting

DIN rail mount (bracket included)

Dimensions & Physical Data

Depth 135.03mm	Height 107.95mm	Weight 0.73kg
Width 78.41mm

Environmental

Operating Temperature

-40°C to 80°C

Communication & Control

Connectors/Input/Output

8x RJ45, 4x SC

Total Ports

Fiber Connector Type

SC Connector

Safety, Standards & Compliance

Standards and Approvals

FCC: Title 47, Part 15, Subpart B, Class A; ANSI C63.4; ICES-003 UL /cUL: Class I, Div 2, Groups A, B, C, D and T4 CE: IEC 61000-4-2/3/4/5/6/8/11, EN 61000-6-2/4 Other: ABS Type Approval for Shipboard Applications; GOST-R certified; RoHS compliant

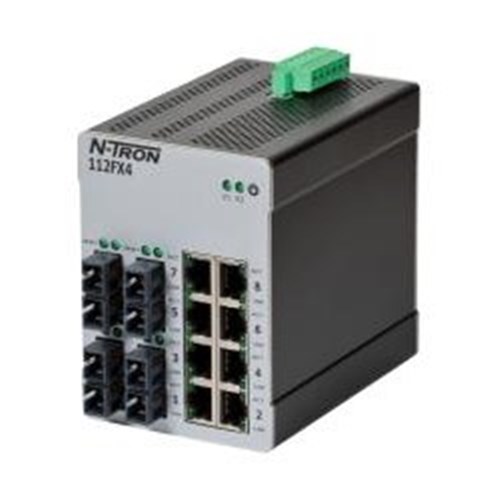

Red Lion 112FX4-SC Industrial Ethernet Unmanaged Switch (8) 10/100 Base-TX RJ45 (4) 100 Base-FX -Port

Product Code: 112FX4-SC
