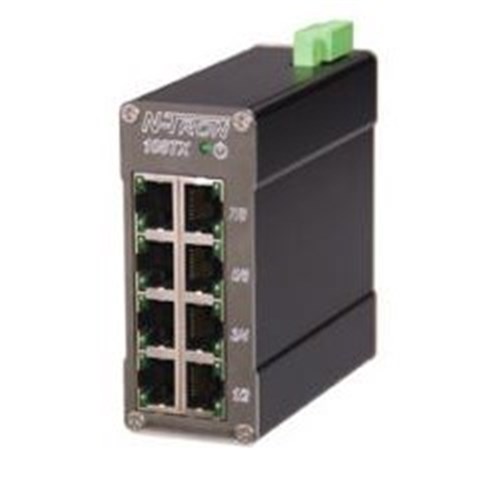

Red Lion 108TX-MDR Industrial Ethernet Switch

Product Code: 108TX-MDR

  • Operates on 10-30 VDC power supply
  • Compact size: 38mm W x 89mm H x 90mm D
  • IP65 protection for harsh environments
  • Wide temp range: -40 to 70°C
  • Complies with FCC, CE, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N - Tron

Electrical

Input Voltage
10V to 30V DC

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
96.58mm
Height
88.9mm
Weight
0.454kg
Width
37.83mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
8x RJ45
Total Ports
8

Safety, Standards & Compliance

Standards and Approvals
CE, DNV, FCC, RoHS, UL
